Removing Oil Guide Housing

WARNING: This page is about a different variant/trim than selected.

WARNING: Toxic substances

Danger of poisoning or suffocation
Danger of burns to the eyes and skin
- → Ventilate the work area well.
- → Never ingest or inhale.
- → Read specific information on the Hazard Sheet.
- → Wear personal protective gear.
- → Do not smoke, eat or drink in the work area.

WARNING: Hot fluid

Danger of scalding
- → Let the fluid cool down.
- → Wear personal protective gear.

WARNING: Highly inflammable or explosive materials

Danger of Are or explosion
- → Avoid contact with hot parts or sources of ignition.
- → Use suction to remove ignitable vapours.
- → Attach warning sign in a clearly visible position.
- → Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
- → Secure collection containers/vessels to prevent them from tipping over.

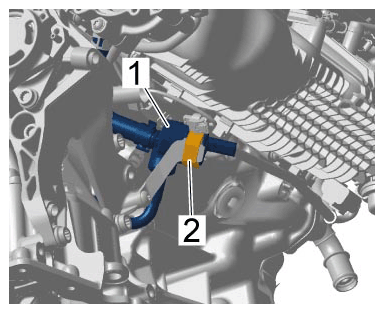

Pull positive crankcase ventilation shut-off valve -1- from holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positive crankcase ventilation shut-off valve

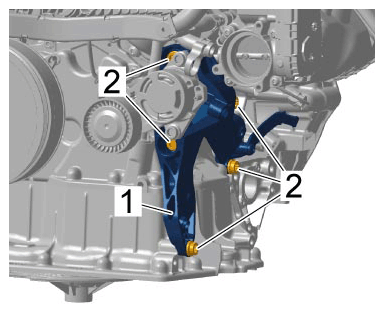

Remove air-conditioning compressor bracket -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air-conditioning compressor bracket
1. 2.1 Unscrew screws on air-conditioning compressor bracket -2- .
2. 2.2 Remove air-conditioning compressor bracket -1- .

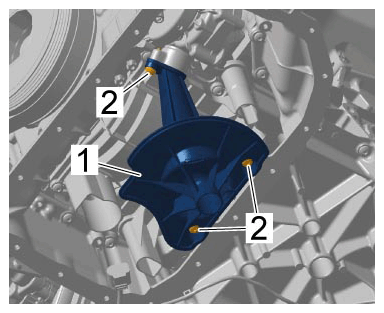

Remove oil intake tube -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil intake tube
1. 3.1 Unscrew screws on oil intake tube -2- .
2. 3.2 Remove oil intake tube -1- .

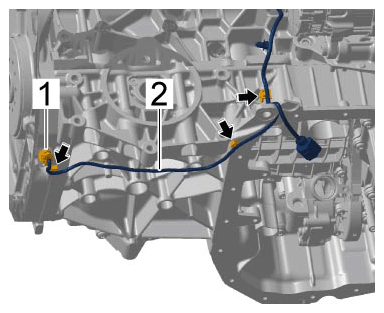

Disconnect electric wire harness -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness
1. 4.1 Release and disconnect electric plug connection -1- .
2. 4.2 Unclip line clips -Arrows- and set electric wire harness -2- aside.

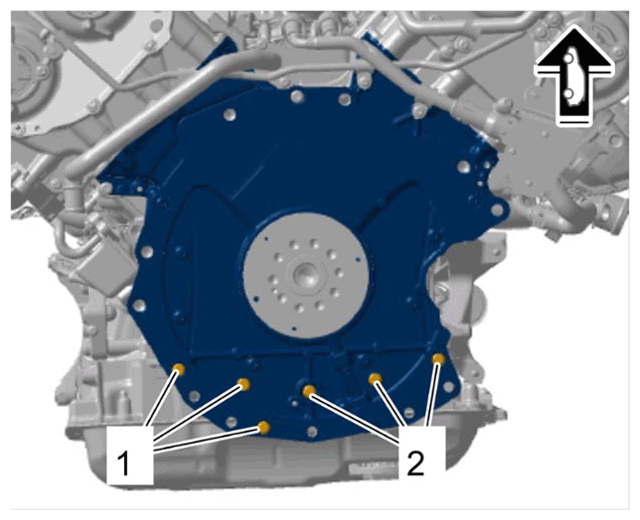

Unscrew screws securing lower chain housing cover to oil guide housing -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws securing lower chain housing cover to oil guide housing

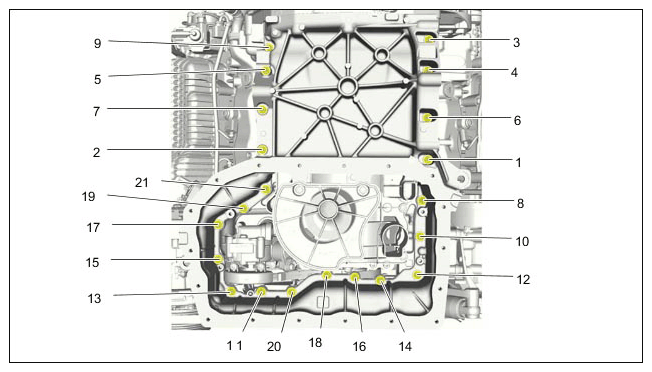

Unscrew screws on oil guide housing in the sequence -21 to 1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for oil guide housing - V8 biturbo

Information

To prevent dirt from getting into the lubrication system, open parts of the engine must be covered.

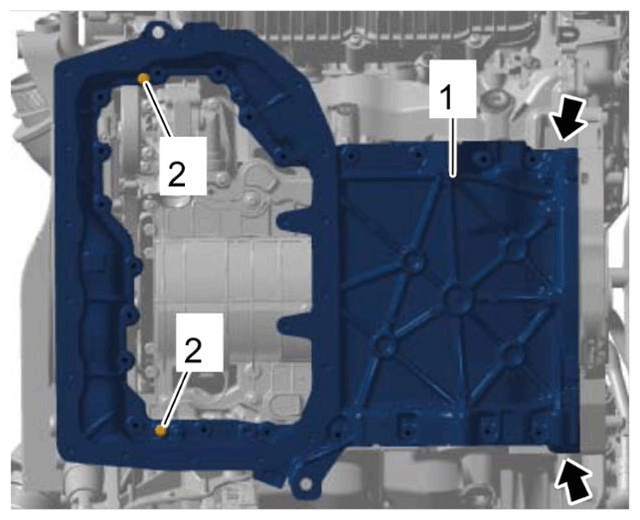

Remove oil guide housing -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing oil guide housing
1. 7.1 Screw in screws -2- as far as they will go by hand.
2. 7.2 Screw in screws -2- alternately by half a turn each. At the same time, lever at the back of the front side of the engine -Arrows- until the oil guide housing -1- becomes detached.
3. 7.3 Unscrew screws -2- and remove oil guide housing -1- .
