Subsequent Work

WARNING: This page is about a different variant/trim than selected.

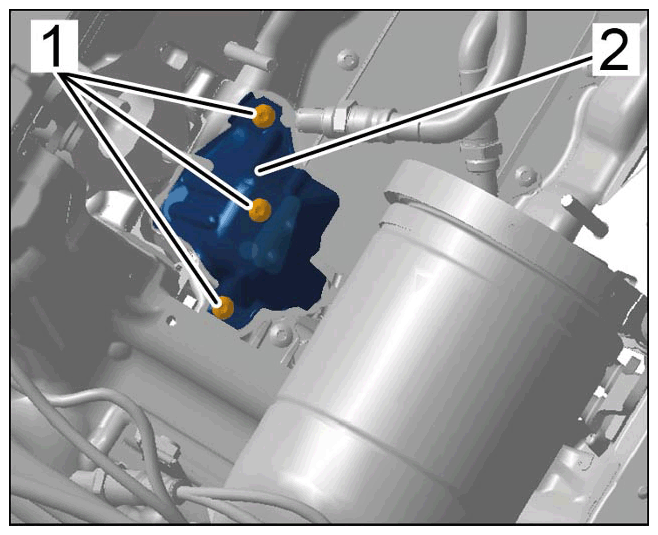

Install rear part of heat shield -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear part of heat shield
1. 1.1 Position rear part of heat shield -2- .
2. 1.2 Fit screws for rear part of heat shield -1- and tighten to > Tightening torque 9 Nm (6.5 ftlb.) .
Install primary catalytic converters.
> 267619 REMOVING AND INSTALLING PRIMARY CATALYTIC CONVERTER (V8 BITURBO)
Install both turbochargers.
> Removing and installing turbocharger (V8 biturbo)
Fill in engine oil.
> 170117 DRAINING AND FILLING IN ENGINE OIL
Add coolant (high-temperature system).
> 193817 DRAINING AND FILLING COOLANT (HIGH-TEMPERATURE COOLING SYSTEM)
