Remove Oil Cooler

WARNING: This page is about a different variant/trim than selected.

Information

There is a risk of contaminating of the oil cooler.

Cover open parts of the oil cooler.

Remove oil cooler -9- .

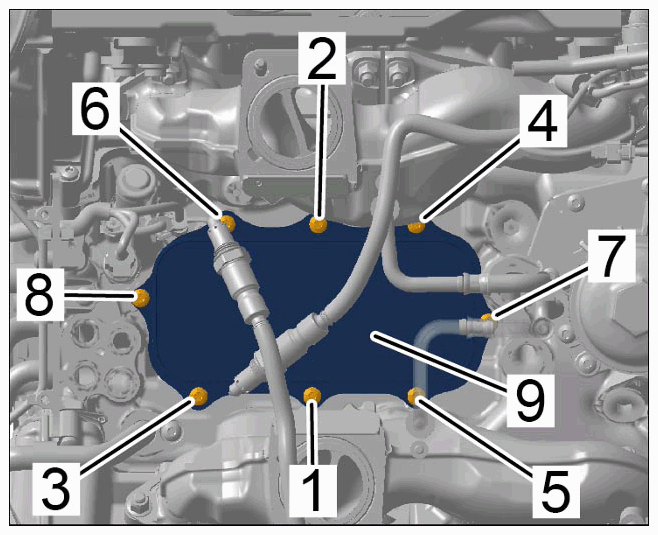

Fig 1: Oil Cooler Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil cooler
1. 1.1 Unscrew screws -1 to 8- .
  Information

  Risk of contaminating the lubricating system
  - Cover open parts of the cylinder head.
2. 1.2 Remove oil cooler -9- .
