Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Drain coolant (high-temperature system).
> 193817 DRAINING AND TILLING COOLANT (HIGH-TEMPERATURE COOLING SYSTEM)
Drain engine oil.
> 170117 DRAINING AND FILLING IN ENGINE OIL
Remove both turbochargers.
> Removing and installing turbocharger (V8 biturbo)
Remove primary catalytic converters.
> 267619 REMOVING AND INSTALLING PRIMARY CATALYTIC CONVERTER (V8 BITURBO)

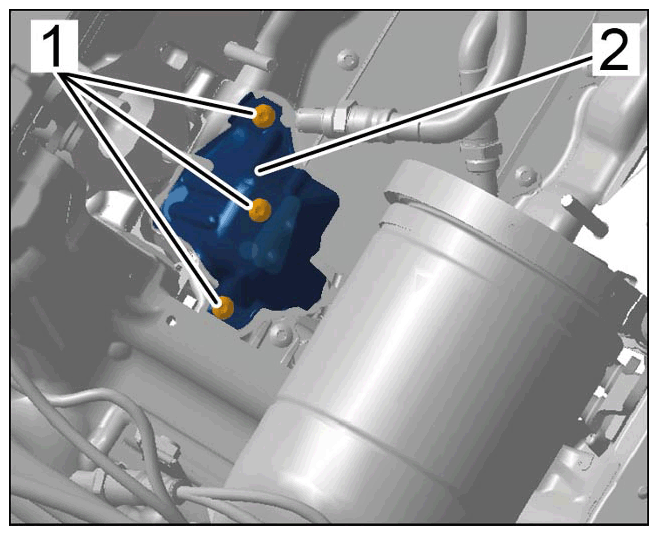

Unscrew screws -1- and remove rear part of heat shield -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear part of heat shield
