Removing Oil Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

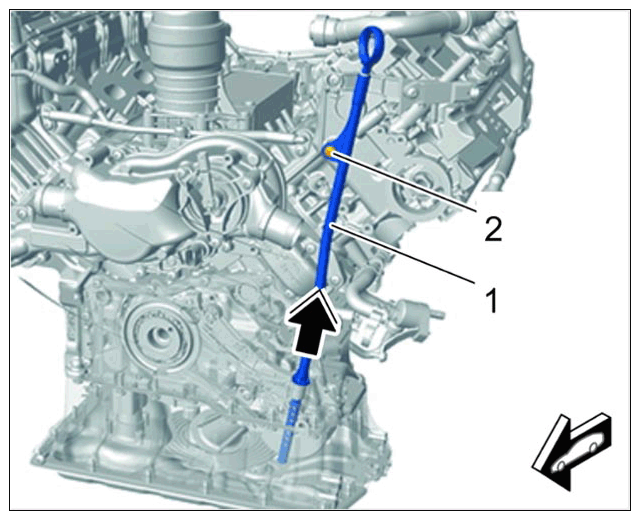

Guide tube for oil dipstick

1. 1.1  Unscrew screw -2-  .
2. 1.2  Pull guide tube for oil dipstick -1-  up -Arrow-  and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

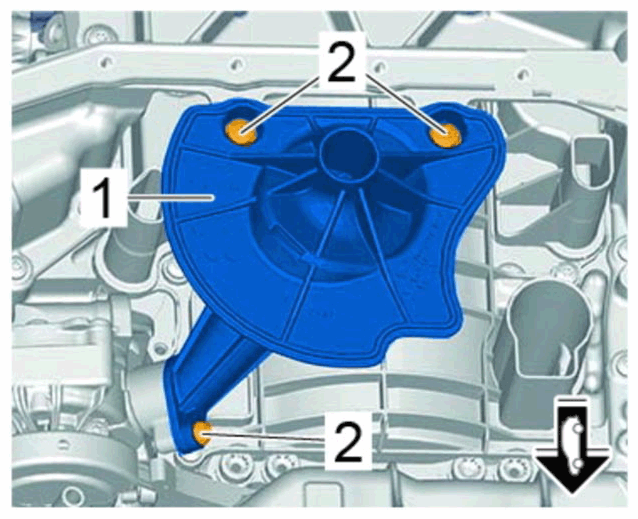

Oil intake tube

1. 2.1  Unscrew and remove screws -2-  .
2. 2.2  Remove oil intake tube -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

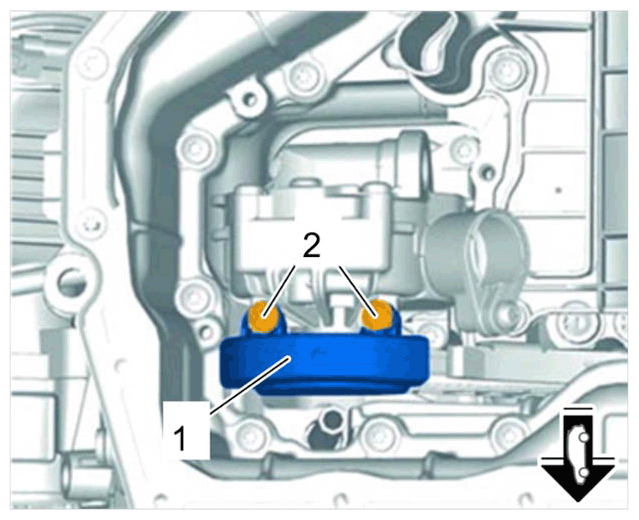

Sprocket guard

1. 3.1  Unscrew and remove screws -2-  .
2. 3.2  Remove sprocket guard -1-  .

Information

> VAS 6928 - Socket wrench set, 39-piece  can be used for loosening and tightening the screw on the sprocket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

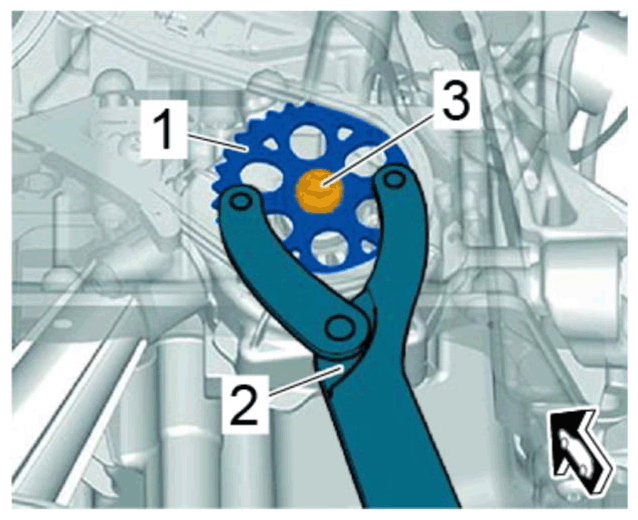

Counter-hold tool on sprocket

1. 4.1  Use > T10172 - counter-hold tool-2-  to counter at the sprocket -1-  .
2. 4.2  Unscrew screw -3-  using a suitable tool from > VAS 6928 - socket/bit set, 39-piece  .
3. 4.3  Remove sprocket -1-  .

Information

• Be careful of the bushes when removing the oil pump. These can sometimes remain in the metal bead gasket or fall into the engine.
• The oil pump must never be re-installed without the bushes.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

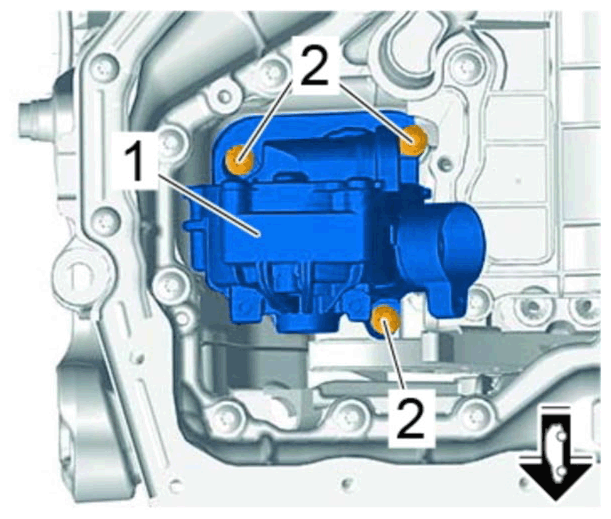

Oil pump

1. 5.1  Unscrew and remove screws -2-  .
2. 5.2  Remove oil pump -1-  with seal.
