Removing Oil Pressure Switch

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

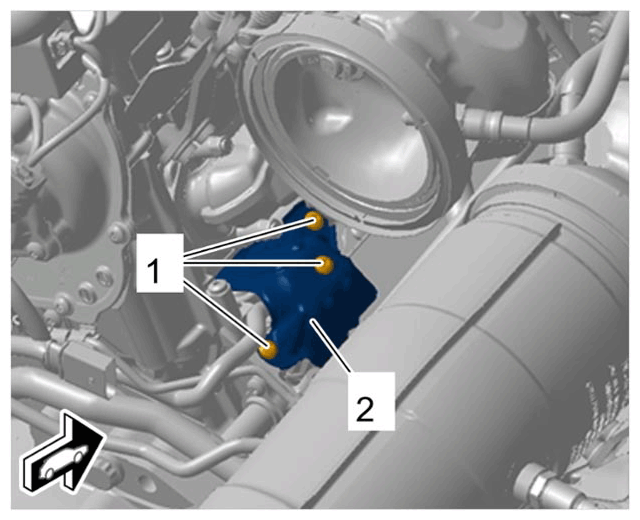

Unscrew screws -1- and remove heat shield -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on oil pressure switch

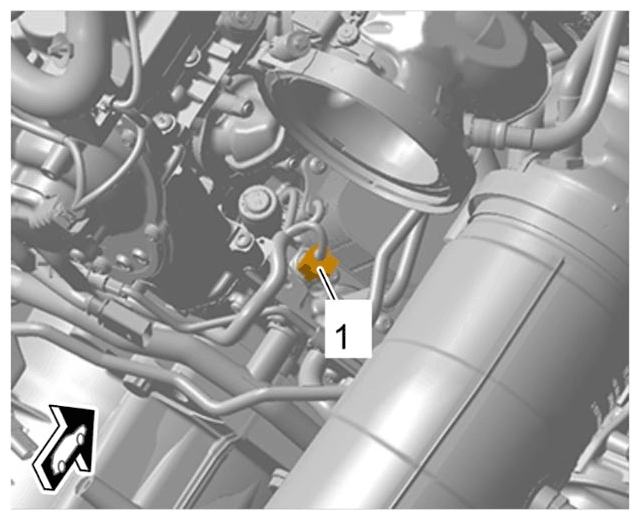

Release and disconnect electric plug connection for oil pressure switch -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for oil pressure switch
Collect emerging engine oil.

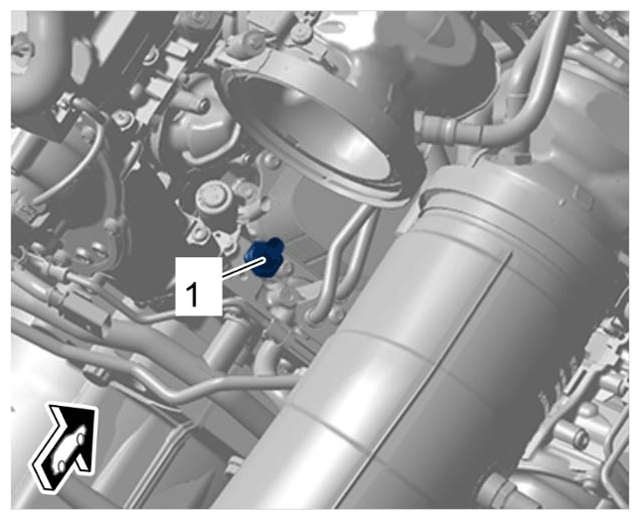

Unscrew oil pressure switch -1- using > T40175 - articulated wrench and guide it up and out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pressure switch
