Removing Oil-Pressure Sender

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    • → Let the fluid cool down.
    • → Wear personal protective gear.
CAUTION: Hot components
  • Risk of burns
    • → Let hot components cool down.
    • → Wear personal protective gear.

Information

Install oil-pressure sender as quickly as possible or close off the opening using a suitable stopper to prevent too much engine oil from leaking out.

  1. Have suitable aids ready for collecting emerging oil.
  2. Remove oil-pressure sender -1-  .

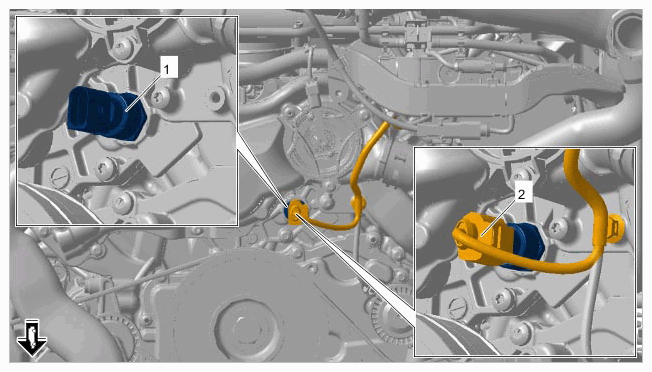

    G15211693Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil-pressure sender

    1. 2.1  Release and disconnect electric plug connection -2-  .
    2. 2.2  Unscrew oil-pressure sender -1-  using > T40363 - socket wrench, a/f 24  .
    3. 2.3  Collect emerging engine oil.
