Removing Pressure Sensor (Behind Throttle Valve)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    1. → Let hot components cool down.
    2. → Wear personal protective gear.
  1. Remove pressure sensor -1-  .

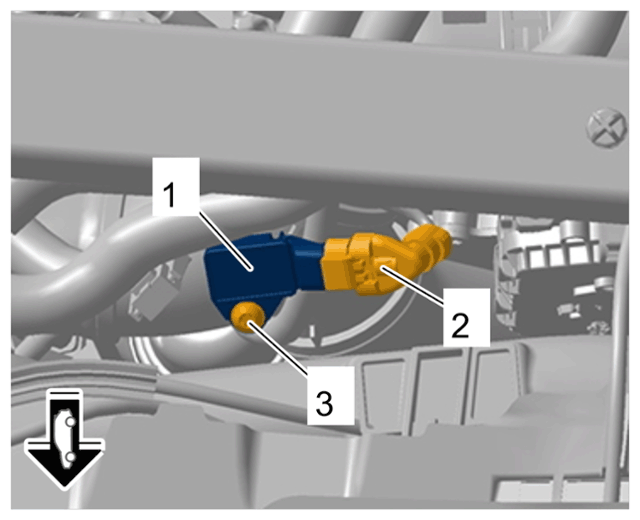

    G15241271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure sensor (behind throttle valve)

    1. 1.1  Release and disconnect electric plug connection -2-  .
    2. 1.2  Unscrew screw -3-  and remove pressure sensor -1-  .
