Removing Pressure Pipe (At The Bottom Between The Charge-Air Coolers)
WARNING: This page is about a different variant/trim than selected.
- Remove pressure pipe -1-
.
- 1.1
Unscrew and remove screws -2-
.
- 1.2
Loosen screw-type clamps -3-
and pull pressure hoses off the pressure pipe -1-
.
- 1.3
Remove pressure pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

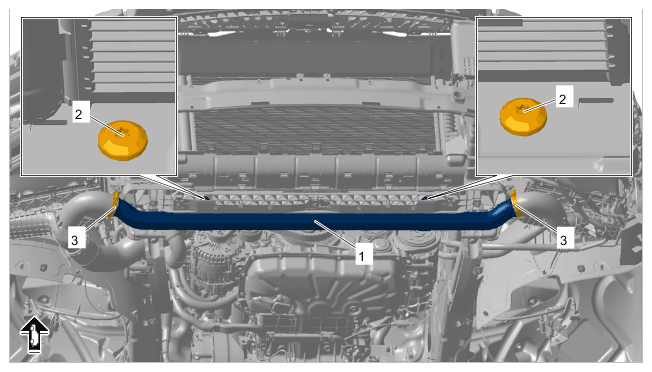

Pressure pipe (at the bottom between the charge-air coolers)
