Removing Recirculating Air Valve

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

Remove recirculating air valve -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

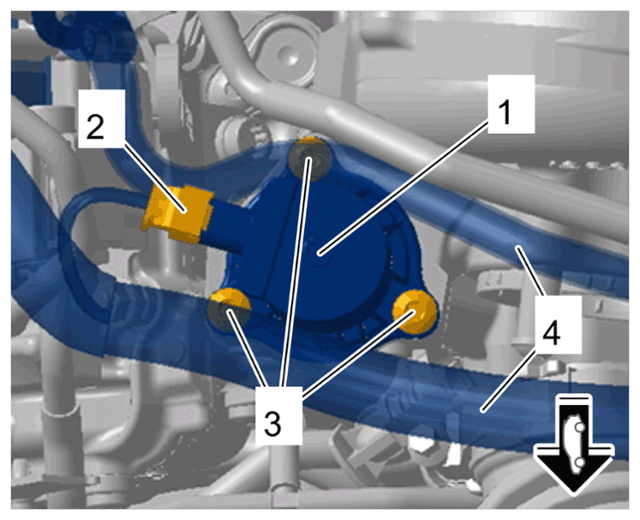

Recirculating air valve
1. 1.1 Release and disconnect electric plug connection -2- .
2. 1.2 Unscrew screws -3- . To do this, press hoses -4- aside slightly.
3. 1.3 Remove recirculating air valve -1- .
