Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

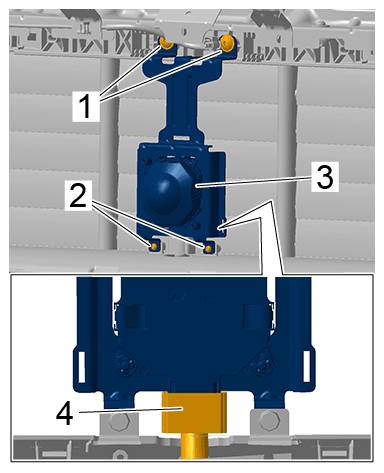

Fastening screw for distance measuring sensor holder	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screws for distance measuring sensor holder	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

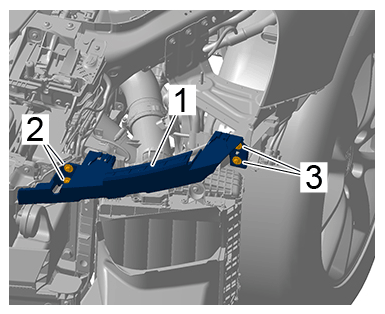

Headlight mounting to inner front-end	Item 2	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Headlight mounting
Headlight mounting to outer front-end	Item 3	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Headlight mounting
