Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install cross member.
1. 1.1 Position cross member.
2. 1.2 Clip in cross member.
Install (upper) cooling-air flaps.
> 193519 REMOVING AND INSTALLING COOLING-AIR FLAPS (TOP) - information on "Installing"
Install headlight mounting -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

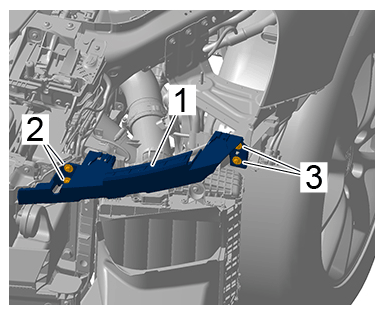

Headlight mounting
1. 3.1 Position headlight mounting -1- .
2. 3.2 Screw in fastening screws -2- and tighten to >Tightening torque 3 Nm (2 ftlb.) .
3. 3.3 Screw in fastening screws -3- and tighten to >Tightening torque 3 Nm (2 ftlb.) .
Install headlight.
> 941519 REMOVING AND INSTALLING HEADLIGHTS
Install front apron.
> 631519 REMOVING AND INSTALLING FRONT APRON
Adjust control unit for distance measuring sensor.
> 278515 ADJUSTING CONTROL UNIT FOR DISTANCE MEASURING SENSOR
