Removing Control Unit For Distance Measuring Sensor

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

  → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

  → Switch off electrical loads before disconnecting or removing them.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

Information

The distance measuring sensor control unit is integrated into the ACC sensor and cannot be removed separately.

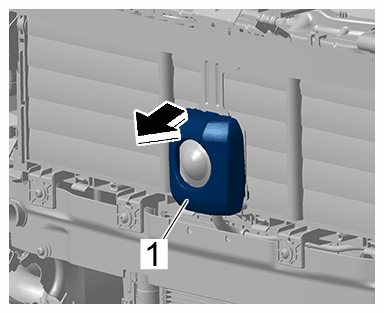

1. Unclip cover -1-  (-Arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

2. Remove control unit for distance measuring sensor -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

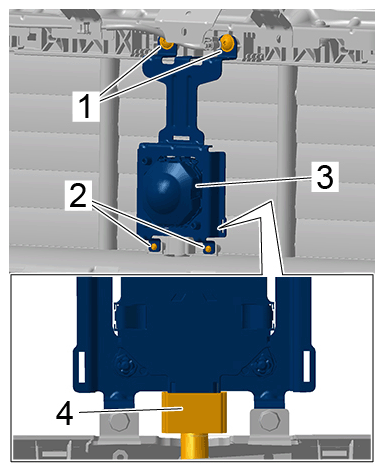

Fastening screws

1. 2.1 Unscrew fastening screws -1-  .
2. 2.2 Unscrew fastening screws -2-  .
3. 2.3 Remove control unit for distance measuring sensor -3-  with holder until the electric plug connection -4-  is accessible.
4. 2.4 Release and unplug electric plug connection -4-  .
5. 2.5 Remove control unit for distance measuring sensor -3-  .
