Preliminary Work

1. Remove front apron.

   > 631519 REMOVING AND INSTALLING FRONT APRON

2. Remove headlight.

   > 941519 REMOVING AND INSTALLING HEADLIGHTS

3. Mark installation position of headlight mounting on cross member.
4. Remove headlight mounting -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

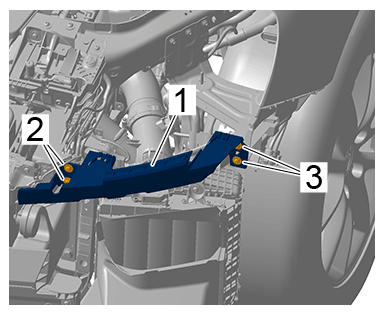

   Headlight mounting

   1. 4.1 Unscrew fastening screws -2 and 3-  .
   2. 4.2 Remove headlight mounting -1-  .
5. Remove (upper) cooling-air flaps.

   > 193519 REMOVING AND INSTALLING COOLING-AIR FLAPS (TOP) - information on "Removing"

6. Loosen cross member -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

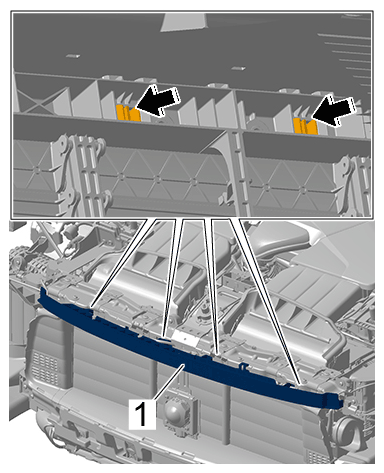

Cross member

1. 6.1 Unclip cross member -1-  (-Arrows-  ).
2. 6.2 Set cross member -1-  with electric lines connected down on the lock carrier.
