Adjusting Control Unit For Distance Measuring Sensor
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Voltage drop
- Irreparable damage to control unit
- Damage to control unit
- Fault entries in the control unit
- Control unit programming/coding is aborted
- Malfunctions in the control unit, even during programming
→ Switch off ignition before disconnecting the control unit.
→ Make sure that the power supply is not interrupted during programming/coding.
→ Connect the battery charger with at least>current 90 A to the vehicle battery.
Information
Before and after fitting the trim cover for the distance measuring sensor control unit, check the following points:
- The holder for the distance measuring sensor control unit must not show any signs of deformation, which may have been caused, for example, by removing or installing the trim cover for the distance measuring sensor control unit. If the holder for the distance measuring sensor control unit is deformed, carefully push it back into shape.
- If the trim cover is damaged or cracked, replace the trim cover.
- After fitting the trim cover, check that it is seated correctly and securely.
Information
The PIWIS Tester instructions take precedence since the description may be different with later Tester releases.
The procedure described here has been structured in general terms. Different text or additional information may appear on the PIWIS Tester.
- Connect the Tester to the vehicle and start it. Switch on ignition.
- Select the vehicle type if required.
- Select the Distance measuring sensor control unit in the overview. Press F12 to continue. The message "Create Vehicle Analysis Log (VAL)?" appears. Press F11 to continue.
- Maintenance/repairs must now be selected.
- Calibration must now be selected. Press F12 to continue.
- Follow the instructions on the Tester. Press F12 to continue.
- Follow the instructions on the Tester. Adjust sensor according to specifications on the Tester using adjusting tool if necessary.

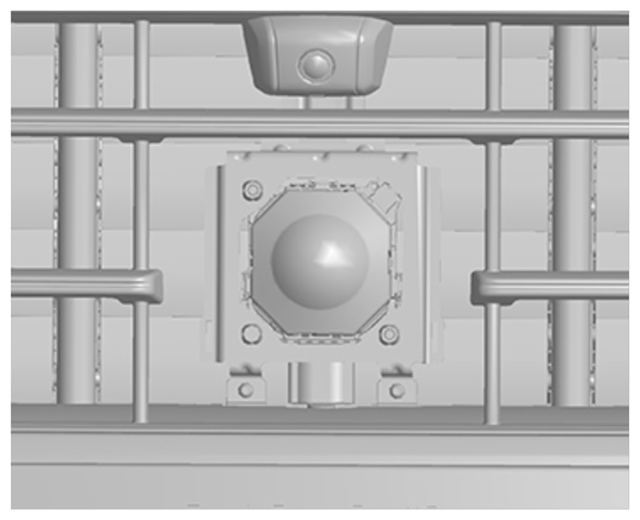

Adjusting sensor
- Repeat the process until the message Adjustment successful appears on the Tester.
- Read out fault memory and erase it if necessary.
- Exit the diagnostic application. Switch off ignition. Disconnect the Tester from the vehicle.
