Removing Route Detection Control Unit
WARNING: This page is about a different variant/trim than selected.

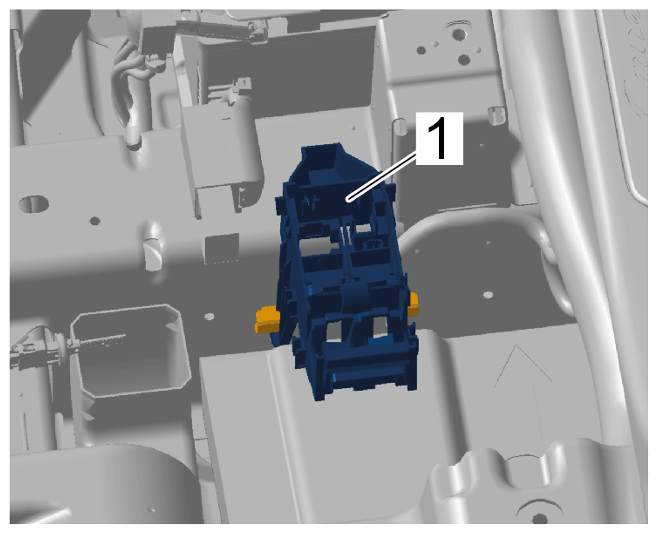

- Unclip line bracket -1-
and move it aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Line bracket

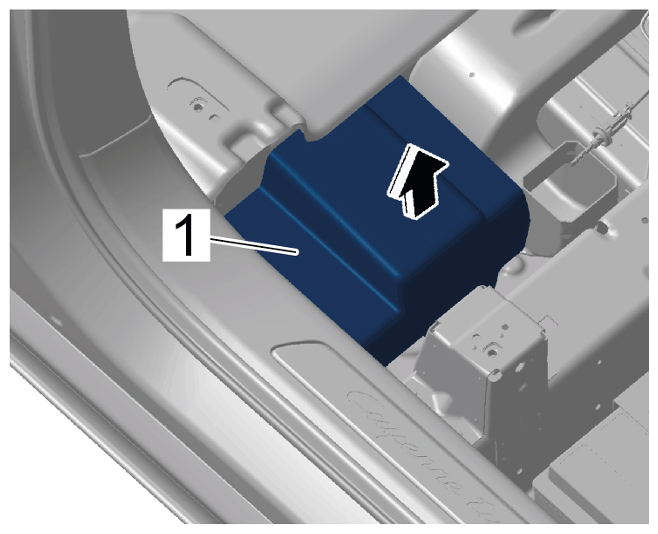

- Remove foam part -1-
(-Arrow-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Foam part

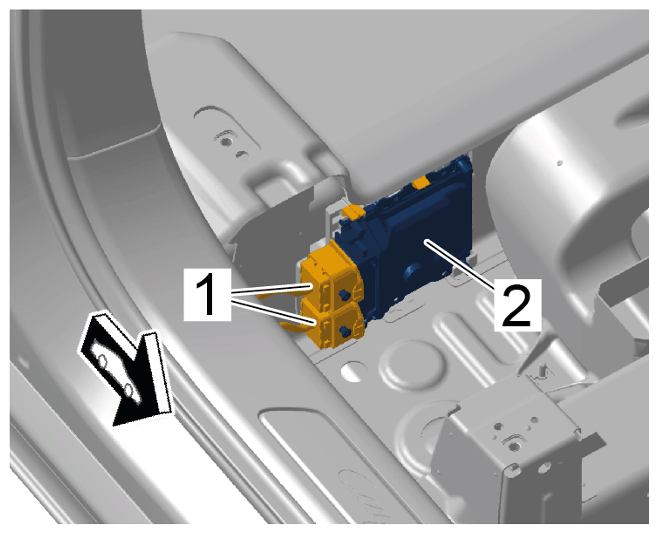

- Release and unplug electric plug connections -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connections
- Unclip route detection control unit -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Route detection control unit
