Removing The Generator

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns

    → Let hot components cool down.

    → Wear personal protective gear.

  1. Disconnect electric connection -1-  and B+ line -3-  from the generator.

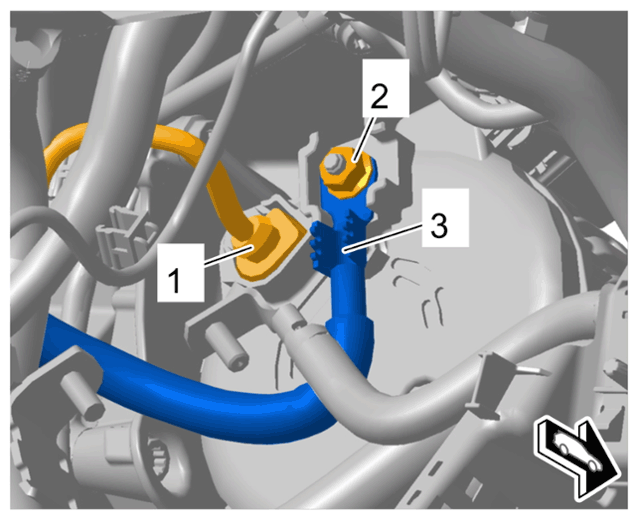

    G15241555Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for generator

    1. 1.1 Unscrew nut -2-  and remove B+ line -3-  from the generator.
    2. 1.2 Release and disconnect electric plug connection -1-  .
  2. Remove generator -1-  .

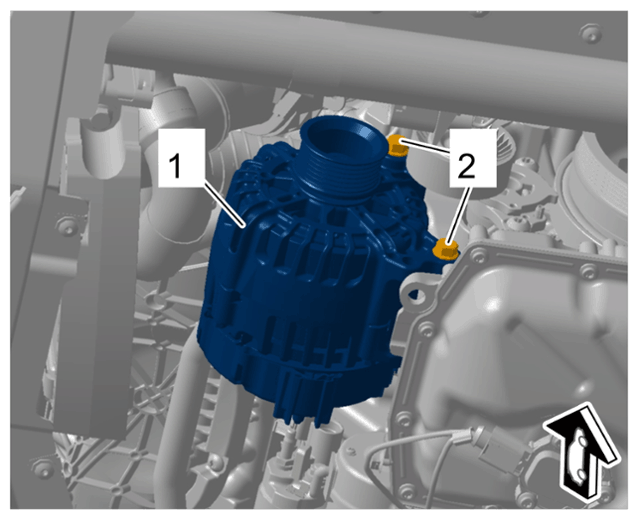

G15241556Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Generator

  1. 2.1 Unscrew screws -2-  and remove generator -1-  by pulling it downwards.
