Removing Battery Cover

WARNING: This page is about a different variant/trim than selected.

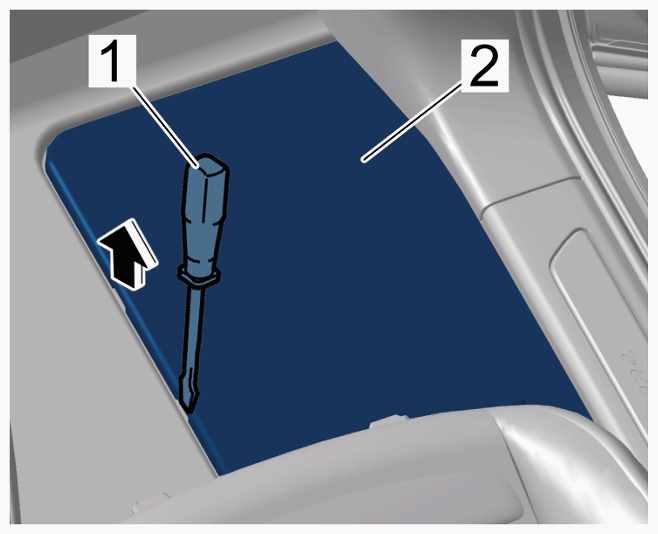

  1. Use a suitable tool -1-  to unclip the battery cover -2-  (-Arrow-  ) and open it.
G15241552Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Battery cover
