Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

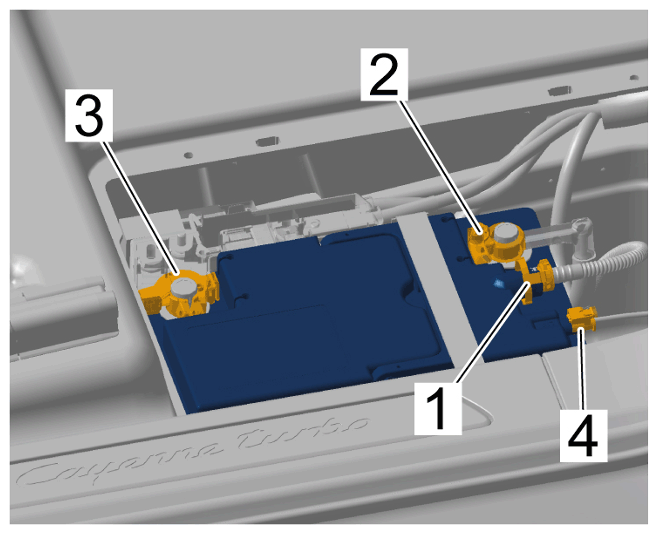

Fastening nuts securing battery holder to body	Item 1	Tightening torque	25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts
Nut on battery ground terminal	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground strap
Nut on battery positive terminal	Item 3	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground strap
