Oil Drain Plug And Oil Filler Screw

WARNING: This page is about a different variant/trim than selected.

Overview:

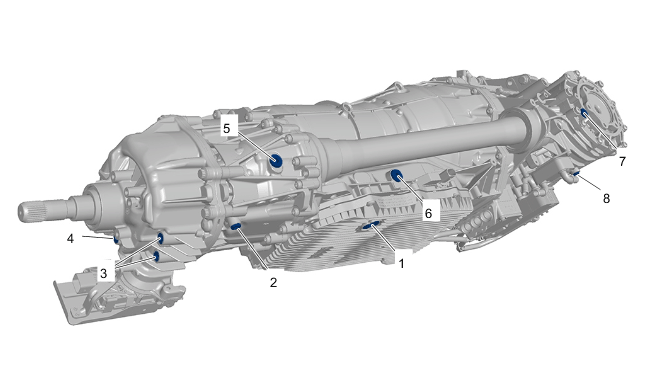

Fig 1: Overview Of Oil Drain Plugs And Oil Filler Screws Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of oil drain plugs and oil filler screws

1	ATF drain plug - tighten as far as the stop; sealing ring - replace!
2	Oil drain plug on intermediate housing > Tightening torque 12 Nm (9 ftlb.) (8.9 ftlb.)
3	Oil drain plugs of transfer box (depending on model: left oil drain plug and right temperature sensor)/Replace oil drain plug and temperature sensor following removal > Tightening torque 17 Nm (13 ftlb.) (12.5 ftlb.)
4	Oil filler screw on transfer box > Tightening torque 17 Nm (13 ftlb.) (12.5 ftlb.)
5	Oil filler screw on intermediate housing > Tightening torque 27 Nm (20 ftlb.) (19.9 ftlb.)
6	Oil filler screw for ATF > Tightening torque 30 Nm (22 ftlb.) (22.1 ftlb.)
7	Oil filler screw on front final drive > Tightening torque 27 Nm (20 ftlb.) (1 9.9 ftlb.)
8	Oil drain plug on front final drive > Tightening torque 10 Nm (7.5 ftlb.) (7.4 ftlb.)
