Final Drive - Differential, Differential Lock

Component overview:

Fig 1: Overview Of Final Drive Assembly Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

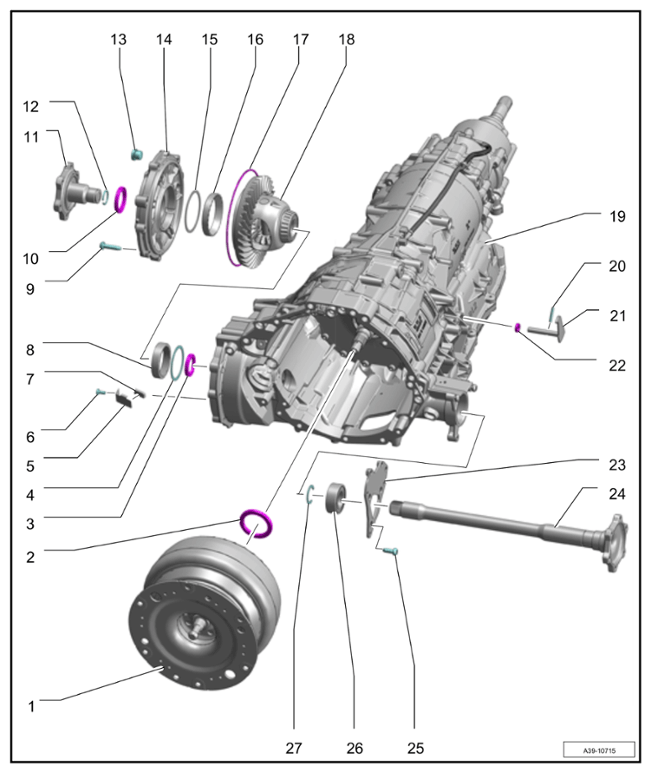

Assembly overview - final drive

1. Torque converter with drive plate
2. Sealing ring on torque converter
3. Sealing ring on differential housing
4. Adjusting shim
5. Holder for solenoid
6. Screw for holder > Tightening torque 6 Nm (4.5 ftlb.)
7. Solenoid-clean if necessary
8. Outer ring for taper roller bearing for differential, inner
9. Screw in and tighten screw (two versions) on differential cover and tighten screws in sequence!

   Information

   • For more information, see Porsche Spare Parts Information.

     > Tightening torque 35 Nm (25.8 ftlb.)  > Tightening torque 47 Nm (34.66 ftlb.)

10. Flanged-shaft sealing ring
11. Flanged shaft
12. Circlip-replace!
13. Oil filler screw
14. Differential cover
15. Adjusting shim
16. Outer ring for taper roller bearing for differential, outer
17. O-ring-replace!
18. Differential gear (differential, bevel gear/crown wheel)
19. Transmission
20. Roll pin-replace following removal!
21. Lever for parking lock shaft
22. Sealing ring for parking lock shaft
23. End plate
24. Left flanged shaft
25. Screw for flanged-shaft mounting saddle > Initial tightening 9 Nm (6.5 ftlb.)  > Final tightening torque angle 60°
26. Left flanged-shaft bearing
27. Lock -replace!

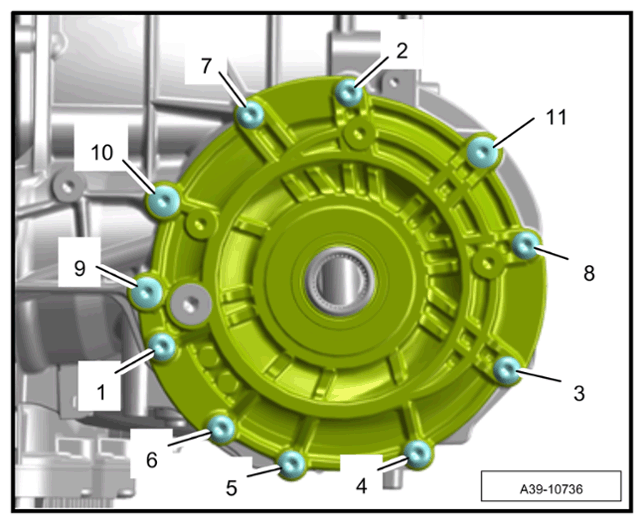

Tightening sequence for differential cover V6

Fig 2: Differential Cover Screws Tightening Sequence (V6 Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for differential cover (figure shows V6 engine)

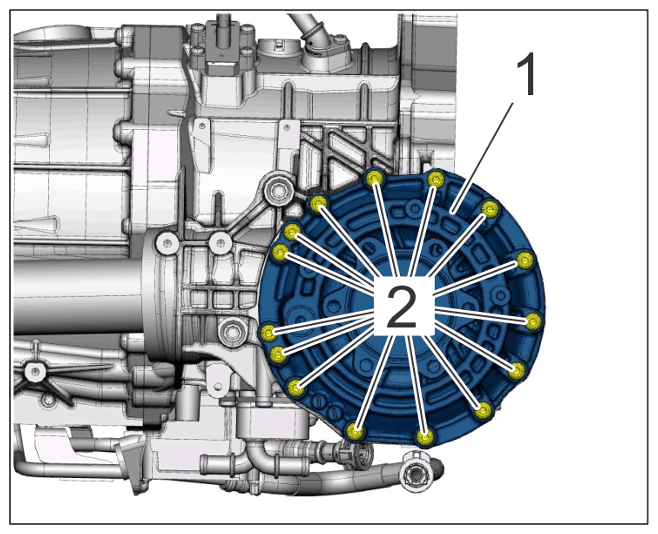

Differential cover - V8:

Fig 3: Differential Cover Components Location - V8

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Differential cover - V8:

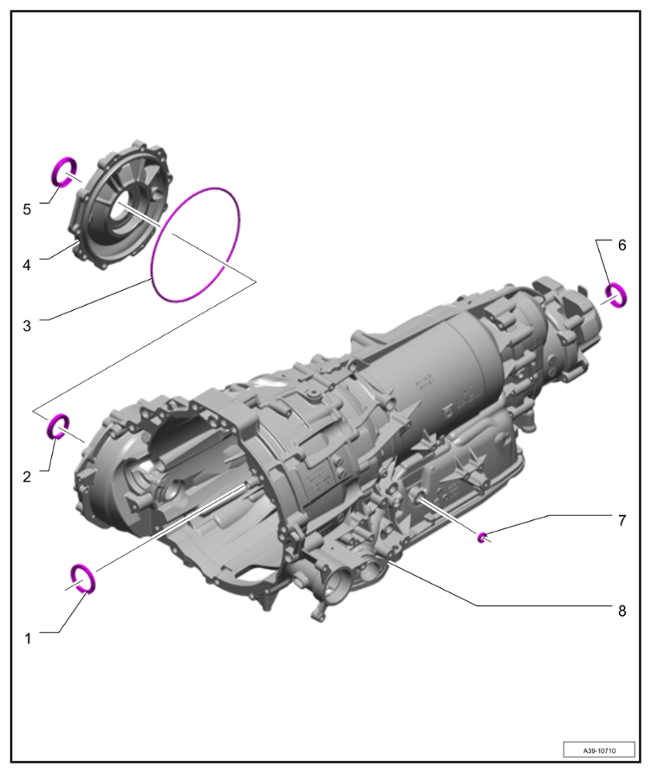

Installation position of sealing rings:

Fig 4: Sealing Rings Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of sealing rings:
