Assembly Overview - Transmission Oil Pump

WARNING: This page is about a different variant/trim than selected.

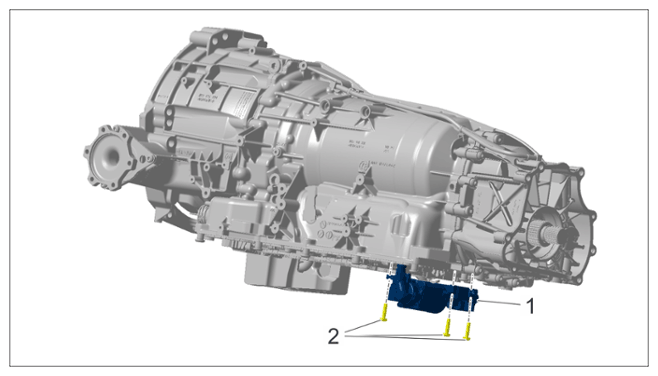

Fig 1: Transmission Oil Pump Component Location With Torque Specification
G15278182Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly overview - transmission oil pump

1  Transmission-oil pump
2  Screw > Tightening torque 4 Nm
