Component overview

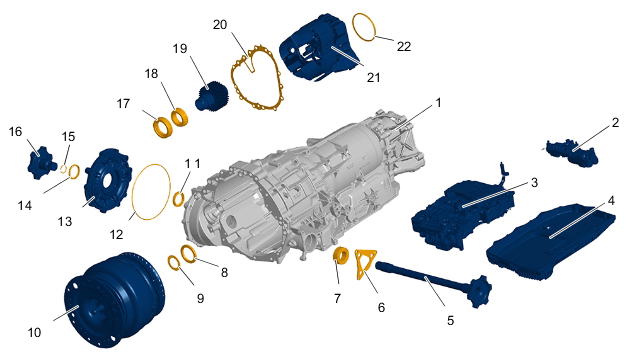

Fig 1: Overview Of Automatic Transmission Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of automatic transmission

Screws securing transmission to engine flange:

General specification: Replace aluminum screws!

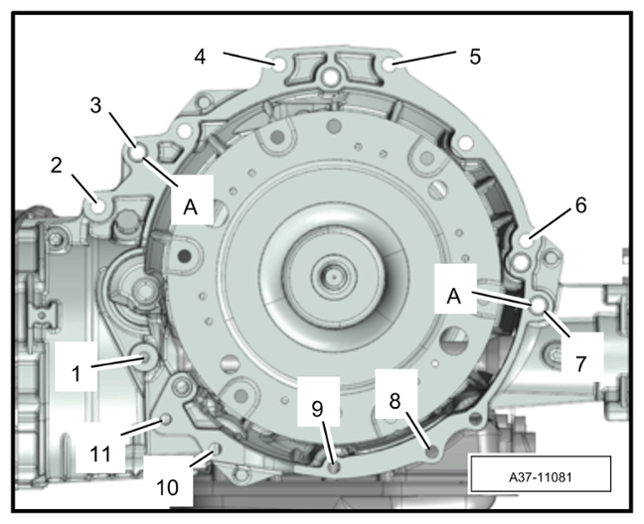

Fig 2: Transmission To Engine Flange Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission to engine flange

1	Screw, M10 x 50 > Tightening torque 65 Nm (48 ftlb.)
2 - 7	Aluminum screws, M12 > Initial tightening torque 30 Nm (22 ftlb.) > Final tightening torque angle 90 Grad
8 - 11	Aluminum screws, M10 > Initial tightening torque 15 Nm (11 ftlb.) > Final tightening torque angle 90 Grad
LHD	Dowel sleeve - replace if damaged! vehicle

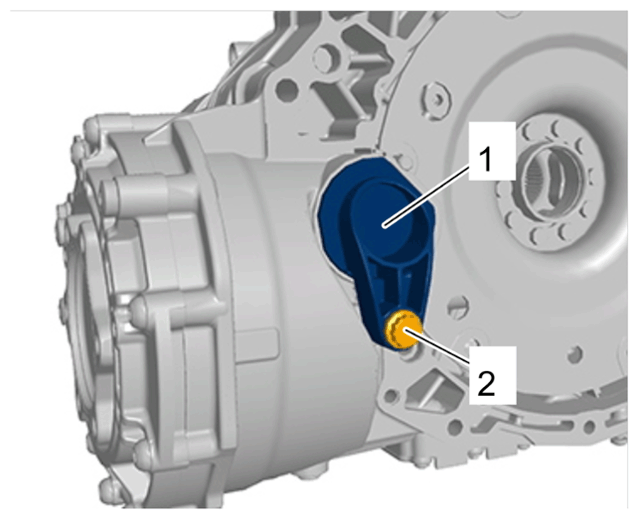

Starter pinion cover (PHEV):

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Starter pinion cover on PHEV vehicles

1	Starter pinion cover - please note that different types exist!
2	Screw for cover - please note that different types exist! > Tightening torque 65 Nm (48 ftlb.) > Tightening torque 20 Nm (14.75 ftlb.)

Transmission markings:

The transmission markings are at the right on the rear housing side in direction of travel.

The -Arrows- indicate the reading direction!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission markings

1	Position on vehicles with 4-cylinder and 6-cylinder engines
2	Position on vehicles with 8-cylinder engines
