Oil Cooler
WARNING: This page is about a different variant/trim than selected.

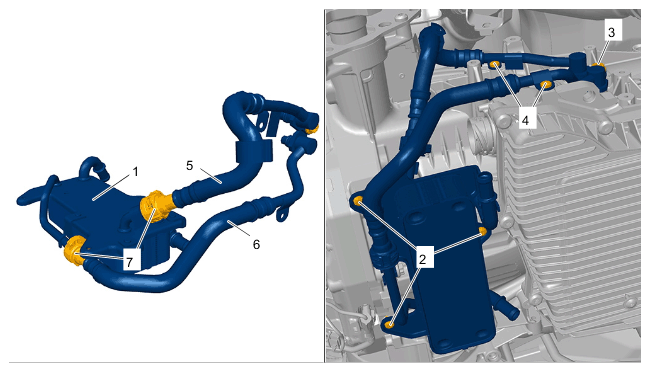

Component overview:
Oil cooler - V6 Turbo
| 1 | Oil cooler |
| 2 | Screws, M6 x 18 Tightening torque 8 Nm (6 ftlb.) |
| 3 | Screw, M8 x 28 > Tightening torque 20 (1 5 ftlb.) Nm |
| 4 | Screw, M6 x 18 > Tightening torque 8 Nm (6 ftlb.) |
| 5 | Oil line, top |
| 6 | Oil line, bottom |
| 7 | Plug-in couplings |
