Gear Selecting System

WARNING: This page is about a different variant/trim than selected.

Component and assembly overview

Fig 1: Selector Support And Selector Lever Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

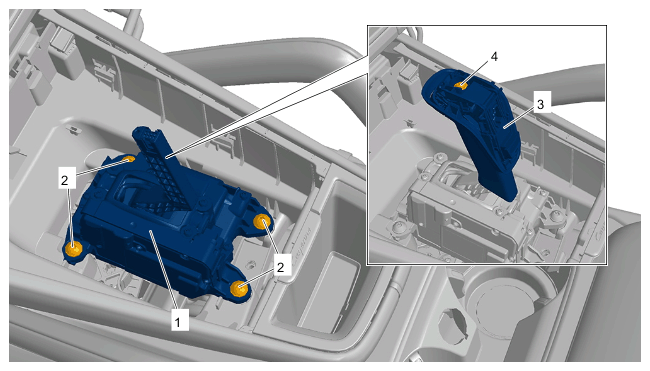

Selector support and selector lever

1	Selector support
2	Screw, M6 > Tightening torque 8 Nm (6 ftlb.)
3	Selector knob
4	Screw, M4 > Tightening torque 3.2 Nm (22 ftlb.)

Selector support alignment:

Fig 2: Selector Support Alignment Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

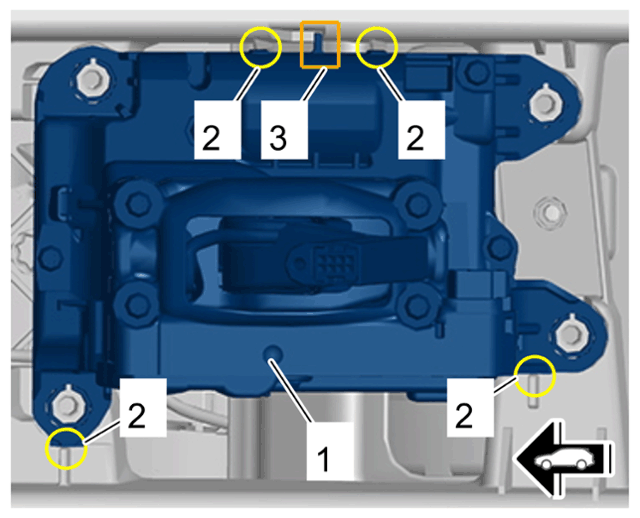

Selector support alignment

1	Selector support
2	Transverse alignment in centre console: using contact surfaces -Identifying feature Yellow-
3	Longitudinal alignment in centre console: using centring fin -Identifying feature Orange-
