Transmission Housing
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

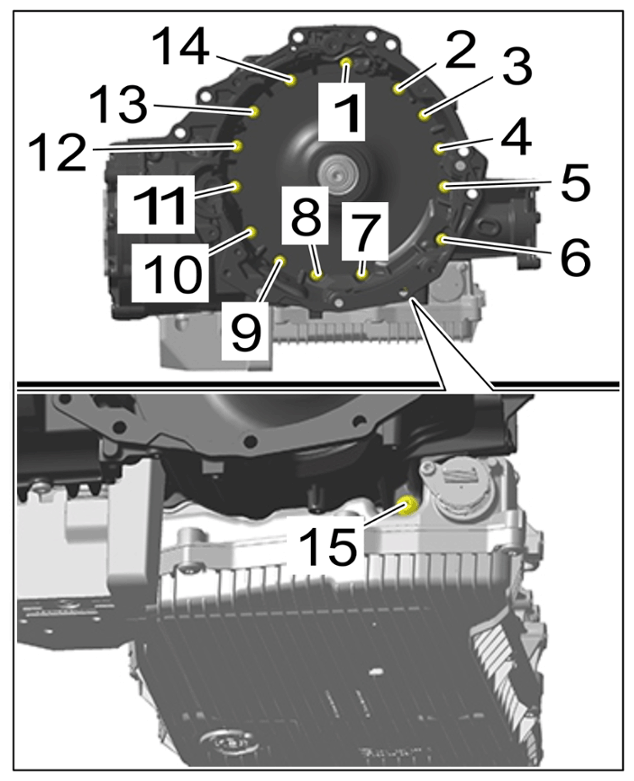

Tightening sequence: Differential housing
| 1 to 14 |
Screws/> Tightening torque 9 Nm (6.6 ftlb.) |
| 1 to 14 |
Screws/> Final tightening+ 90° |
| 15 |
Screws/> Tightening torque 16 Nm (11.8 ftlb.) |
