Pressure adjuster for decoupler (Hybrid):

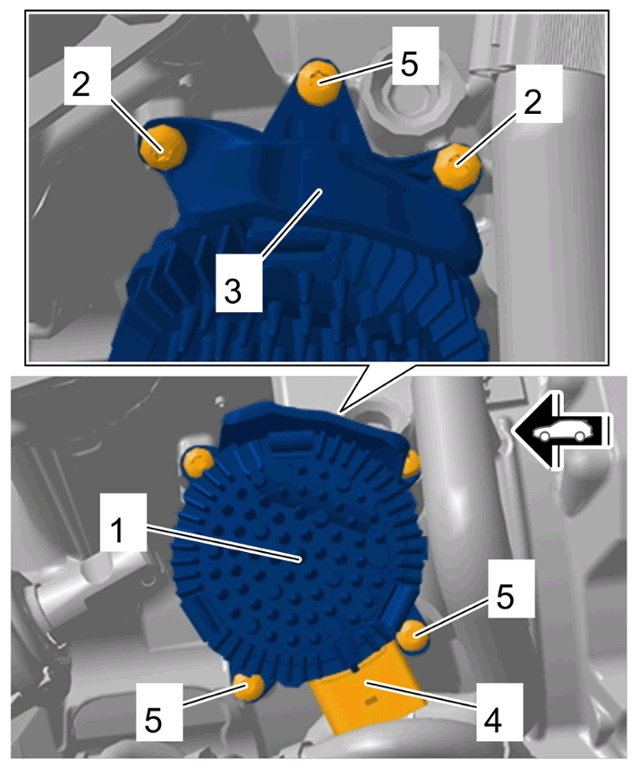

Fig 1: Pressure Adjuster For Clutch Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure adjuster for clutch

1	Pressure adjuster for decoupler
2	Screws for heat protection > Tightening torque 9 Nm (65 ftlb.)
3	Heat protection
4	Cable plug connection
5	Screws for pressure adjuster > Tightening torque 9 Nm (65 ftlb.)
