Disconnecting And Connecting Battery
WARNING: This page is about a different variant/trim than selected.
WARNING:
Static battery charge
→ Do not rub the battery with a dry cloth.
- Battery can explode
- Electrical discharges
→ Do not rub the battery with a dry cloth.
Information
Switch off all loads and switch off ignition.
Keep ignition key outside of the vehicle and outside of the transmission range of the radio receiver.
Do not disconnect the battery while the engine is running.
Disconnect and connect battery with extreme caution.
Disconnect battery
- Remove battery cover in footwell on the passenger's side.
> 271219 REMOVING AND INSTALLING BATTERY COVER - on "Removing"

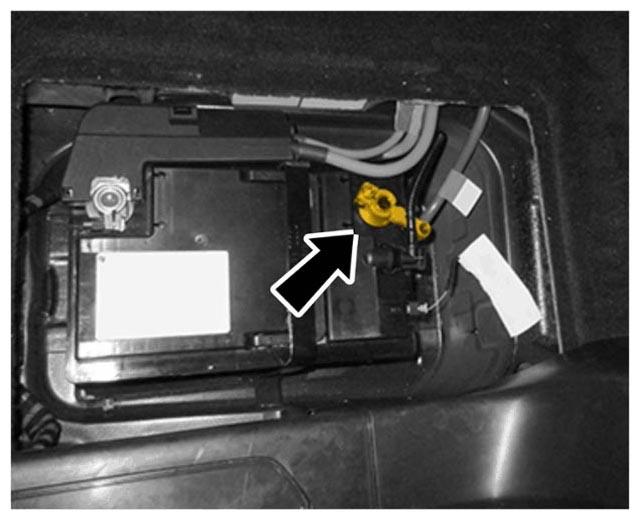

- Disconnect ground cable from the battery.
Loosening ground strap
- Route or insulate the ground strap so that all contact with a battery terminal is avoided.
Connect the battery
- Connect ground cable to the battery terminal and secure it.
- Fit cover in footwell on the passenger's side.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Terminal clamp to battery | Tightening torque | 6 Nm (4.5 ftlb.) |
