Technical Values: Overview

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

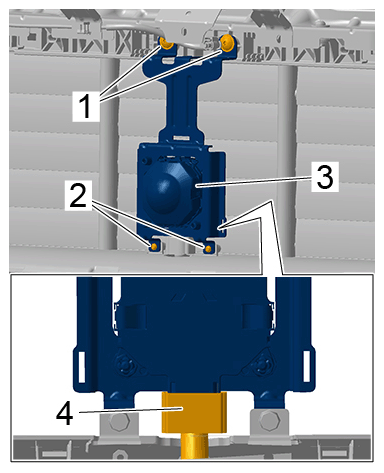

Fastening screw for distance measuring sensor holder	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screws for distance measuring sensor holder	Item 2	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

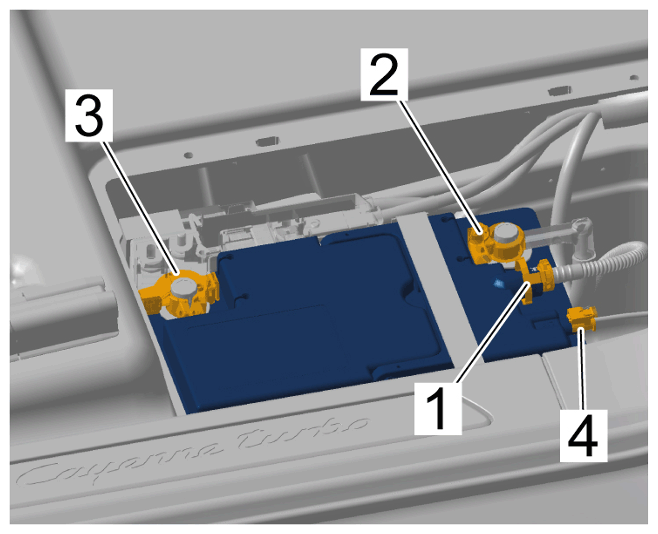

Fastening nuts securing battery holder to body	Item 1	Tightening torque	25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts
Nut on battery ground terminal	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground strap
Nut on battery positive terminal	Item 3	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground strap

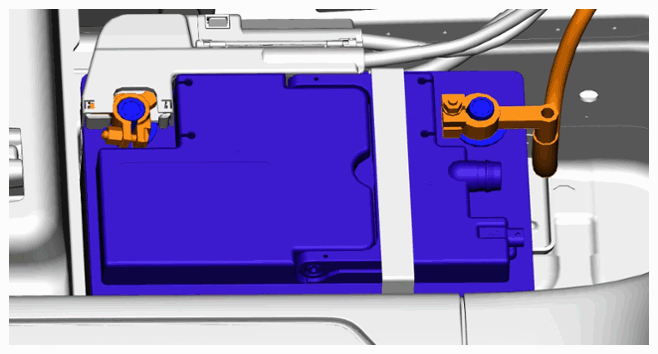

Battery terminal to battery (AGM battery)		Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Threaded joints on battery terminals

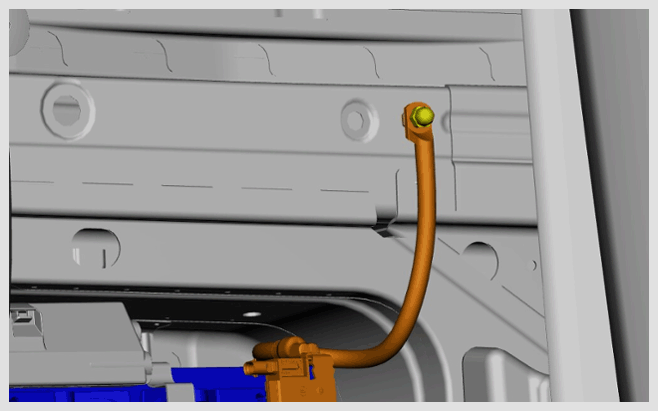

Nut securing ground strap to body		Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on ground line

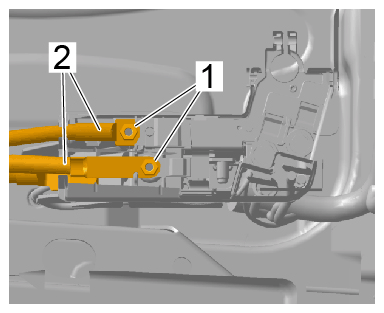

Fastening nuts securing positive cables to isolating element	Item 1	Tightening torque	17 Nm (13 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for positive cables
Fastening nut securing positive cable to isolating element	Item 1	Tightening torque	17 Nm (13 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut for positive cable

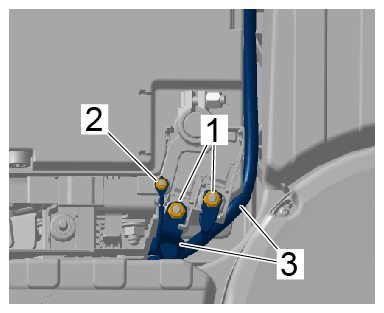

Fastening screw securing wire harness to isolating element	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for wire harness
Fastening nuts securing positive cables to isolating element	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for positive cables
Fastening nuts for battery terminals	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts
Fastening screws for battery holder	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Battery cover

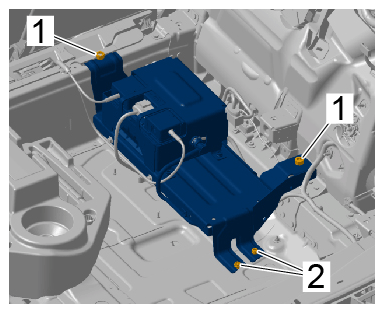

Fastening screw on holder for 48-volt additional battery	Item 1	Tightening torque	70 Nm (52 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Fastening screw on holder for 48-volt additional battery	Item 2	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

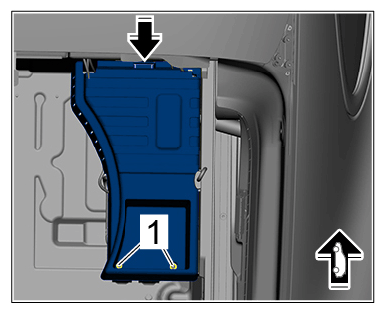

Cover on 48-volt additional battery to body	Item 1	Tightening torque	4.5 Nm (3.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover on 48-volt additional battery

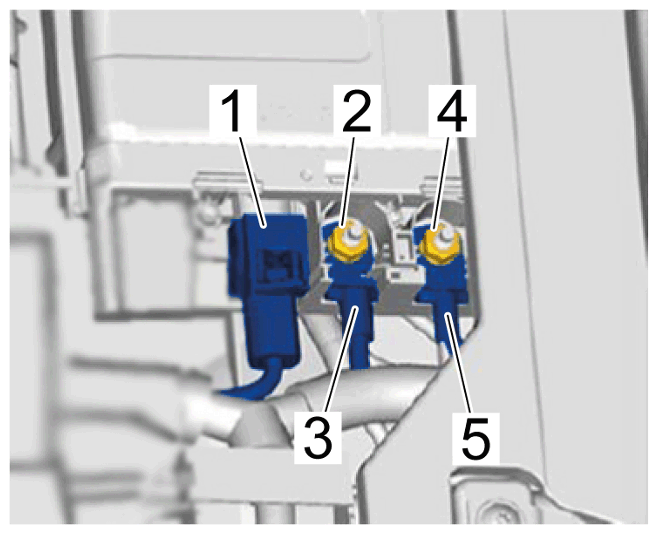

Fastening nuts securing electric line to voltage converter	Item 2, 4	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection

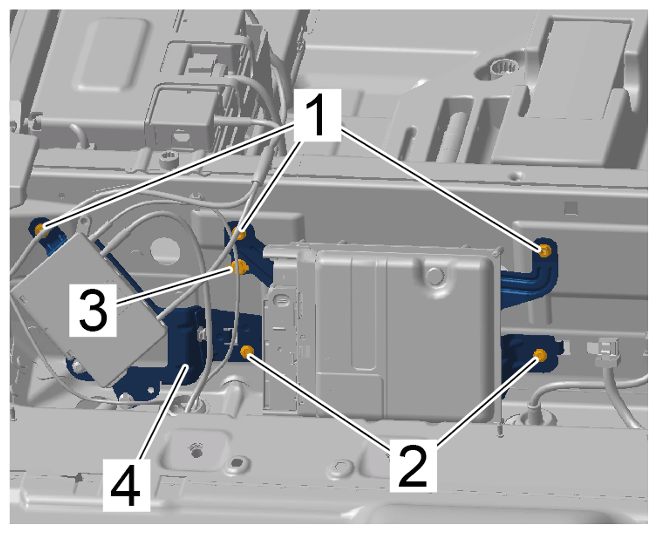

Fastening nuts for 48-volt voltage converter holder	Item 1	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts

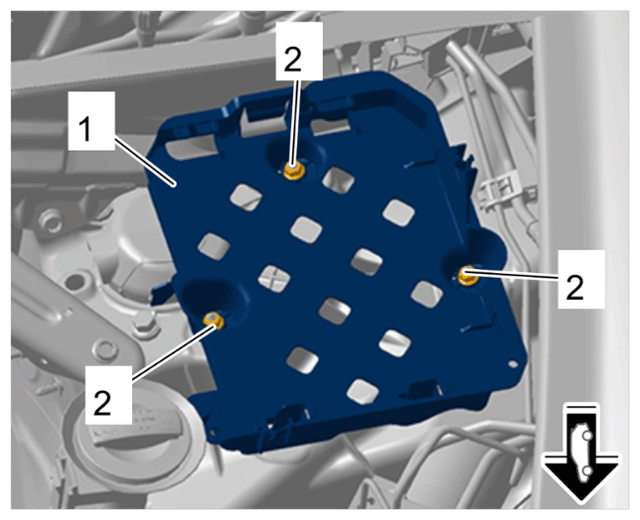

Fastening screws for 48-volt voltage converter holder	Item 2	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

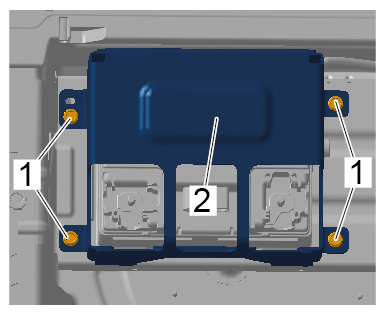

Fastening screws for 48-volt voltage converter holder	Item 1	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Voltage converter

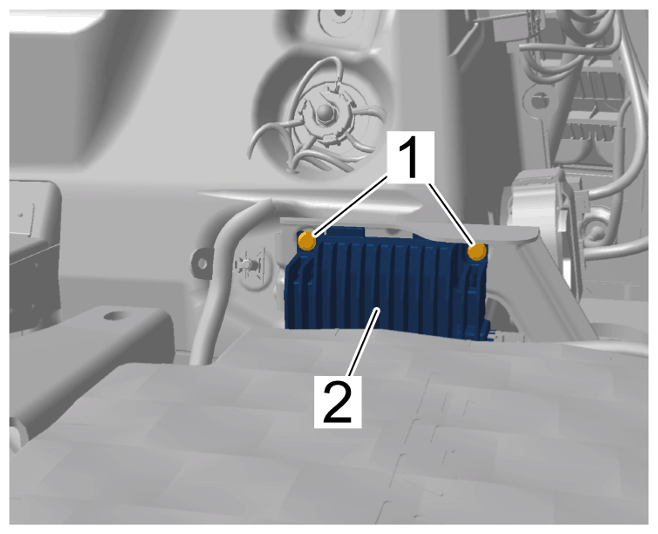

Control unit for acoustic simulator	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit for acoustic simulator

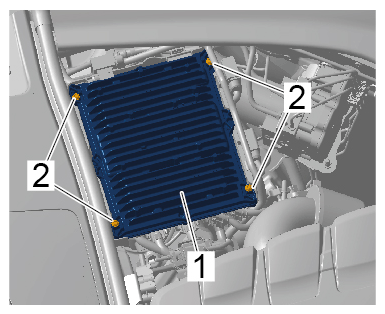

DME (diesel) control unit to holder	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

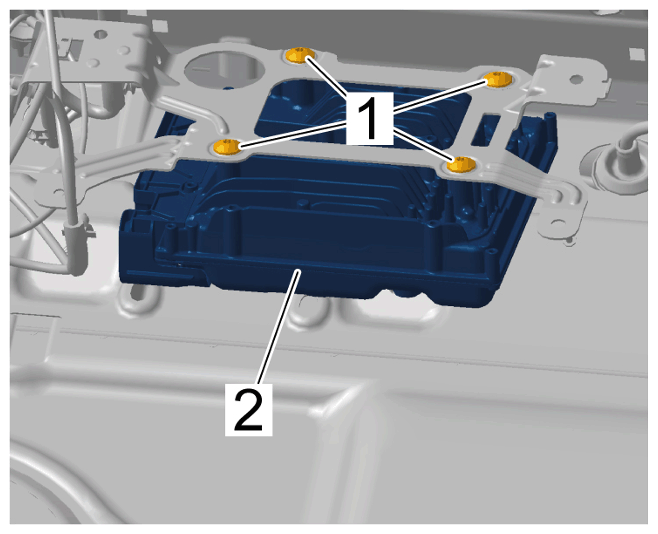

Nuts securing DME control unit holder to body	Item 2	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. DME control unit holder

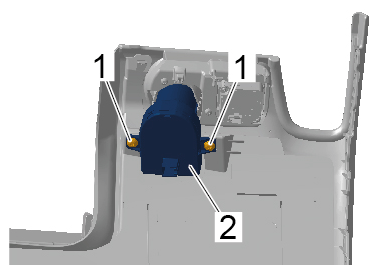

Ignition starter switch to trim panel	Item 1	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

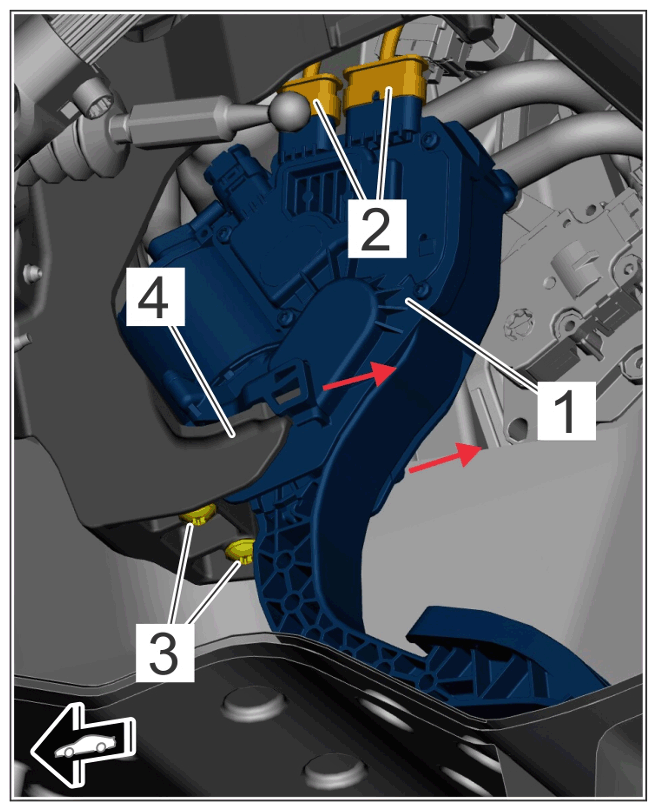

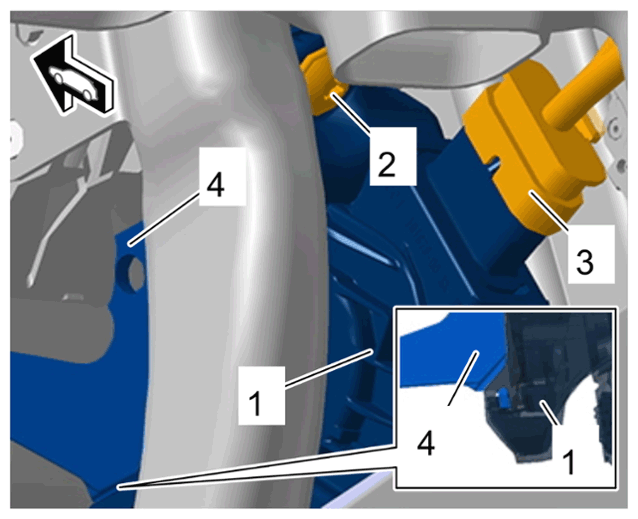

Passive accelerator pedal to bearing support	Item 2: Internal Torx screw, M6 x 18	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Passive accelerator pedal
Active accelerator pedal to bearing support	Item 3: Internal Torx screws, M6 x 28	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Active accelerator pedal
