Technical Values: Battery

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Fastening nuts securing battery holder to body	Item 1	Tightening torque	25 Nm (19 ftlb.)

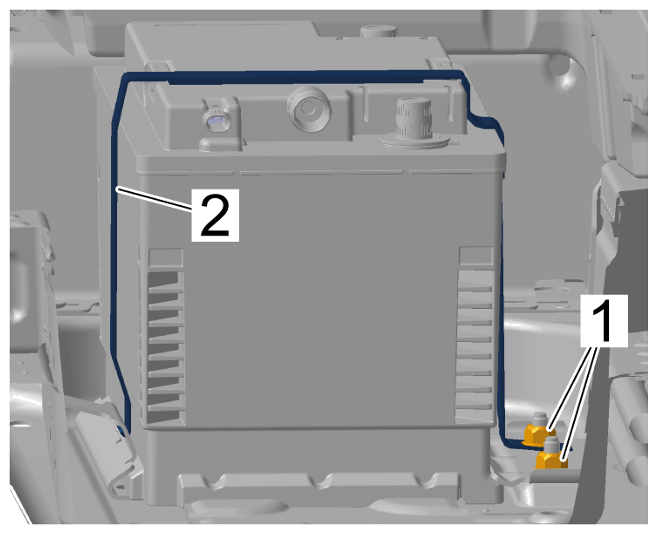

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts
Nut on battery ground terminal	Item 2	Tightening torque	5 Nm (3.5 ftlb.)

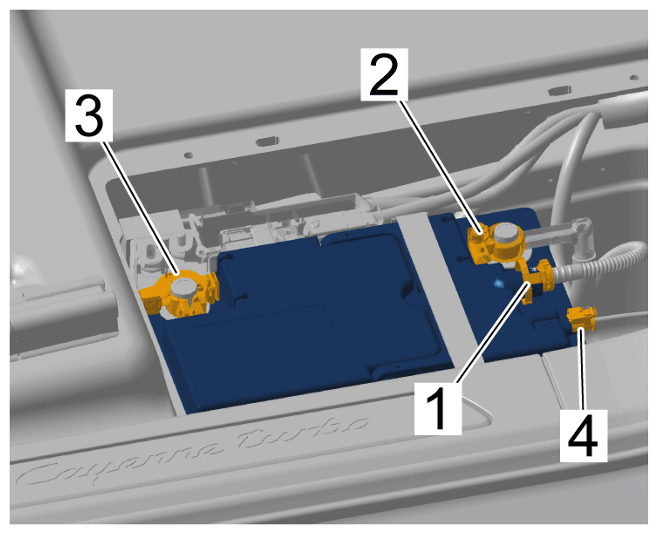

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground strap
Nut on battery positive terminal	Item 3	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground strap
Battery terminal to battery (AGM battery)		Tightening torque	6 Nm (4.5 ftlb.)

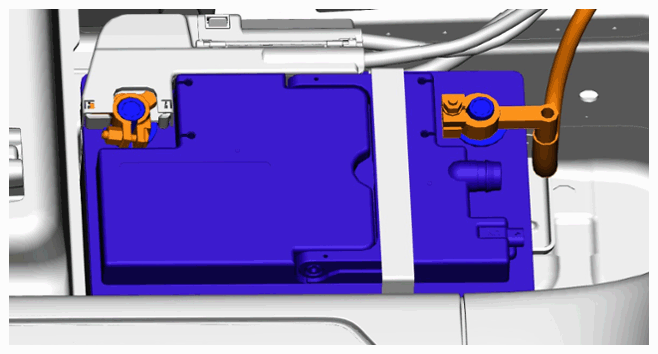

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Threaded joints on battery terminals
Nut securing ground strap to body		Tightening torque	20 Nm (15 ftlb.)

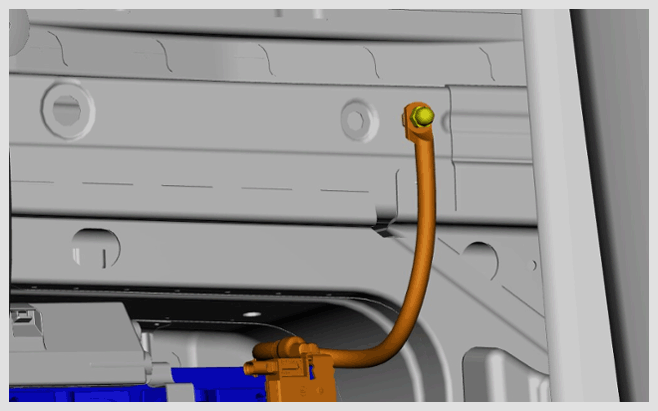

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on ground line
