Battery Isolating Element

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value

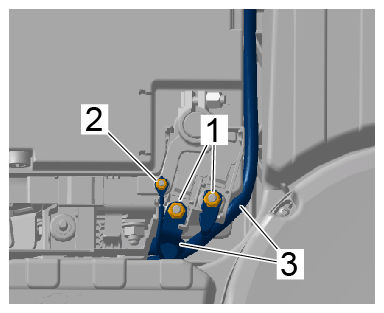

Fastening nuts securing positive cables to isolating element	Item 1	Tightening torque	17 Nm (13 ftlb.)

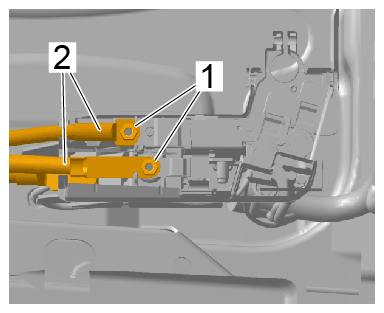

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for positive cables
Fastening nut securing positive cable to isolating element	Item 1	Tightening torque	17 Nm (13 ftlb.)

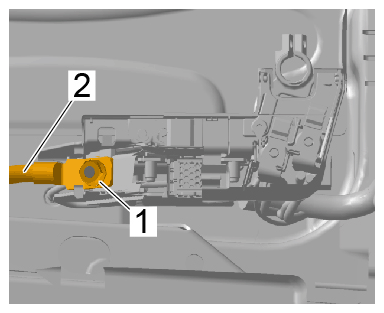

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut for positive cable
Fastening screw securing wire harness to isolating element	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw for wire harness
Fastening nuts securing positive cables to isolating element	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts for positive cables
