Starter, Power Supply: Starter
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

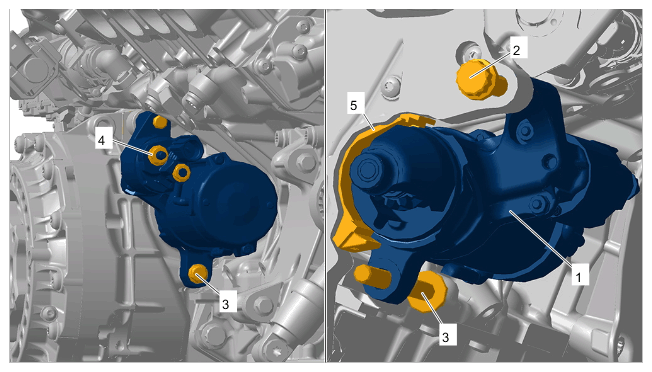

Starter
| 1 |
Starter |
| 2 |
Screw, M12 x 100/replace
> Initial tightening 30 Nm (22 ftlb.)
>Final tightening + 105° |
| 3 |
Screw, M10 x 50 >Tightening torque 65 Nm (48 ftlb.) |
| 4 |
M8 nut >Tightening torque 20 Nm (15 ftlb.) |
| 5 |
Cover section/see Service Information! |
