Tightening Sequence For High-Pressure Fuel Lines

1. Fit union nut -1-  by hand.
   1. 1.1 Coat thread on union nuts with Microgleit DF 977S. Observe drying time of at least 5 minutes before fitting.
2. Tighten screws -2-  with >Tightening torque 8 Nm (5.9 ftlb.)  >final tightening torque 45°  .
3. Screw with -3-  > Tightening torque 9 Nm (6.6 ftlb.)
4. Union nut -1-  with >Tightening torque of 10 Nm (7.4 ftlb.)  >Torque angle 60°

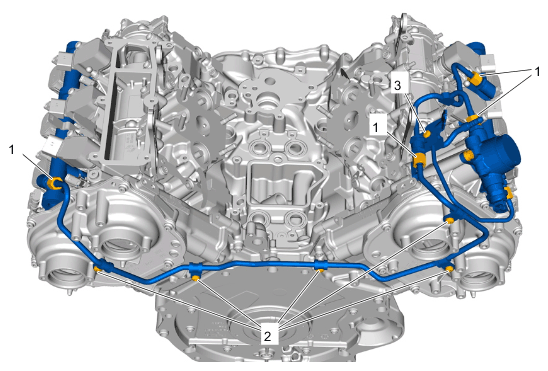

Fig 1: High-Pressure Fuel Lines Screws Tightening Sequence - V6 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for high-pressure fuel lines V6 biturbo
