Oxygen Sensors

WARNING: This page is about a different variant/trim than selected.

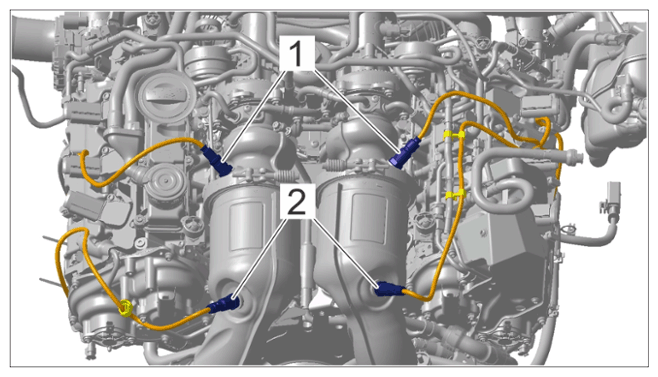

Fig 1: Oxygen Sensors Components Location With Torque Specification - V6 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oxygen sensors - V6 biturbo

Oxygen sensors upstream of catalytic converter/coat thread with hot screw paste >Tightening torque 52 Nm (38 ftlb.)
Oxygen sensors downstream of catalytic converter/coat thread with hot screw paste >Tightening torque 52 Nm (38 ftlb.)
