Fuel Tank

WARNING: This page is about a different variant/trim than selected.

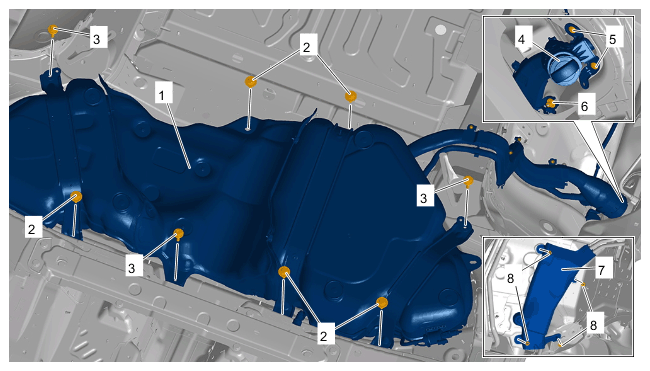

Fig 1: Fuel Tank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel tank

1	Fuel tank
2	Screw M8 x 40/Note tightening sequence > Torque 20 Nm (14.8 ftlb.)
3	Screw M8 x 50 Note tightening sequence > Tightening torque 20 Nm (14.8 ftlb.)
4	Tank filler neck
5	Screw M6 x 16 >Tightening torque 8 Nm (5.9 ftlb.)
6	Nut >Tightening torque 2.5 Nm (1.8 ftlb.)
7	Fuel line cover
8	Nut M6 >Tightening torque 4.5 Nm (3.3 ftlb.)

Tightening sequence for fuel tank restraining strap:

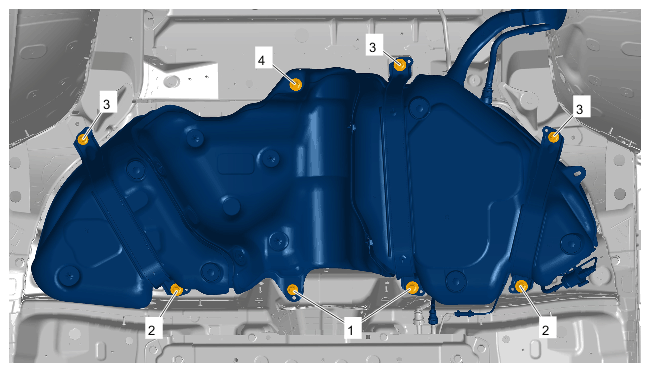

Fig 2: Fuel Tank Restraining Strap Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for fuel tank restraining strap

1-4	Tightening sequence for fuel tank restraining strap

Fuel pump with flange ring:

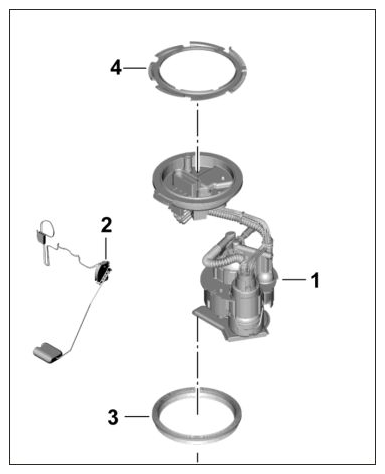

Fig 3: Fuel Pump With Flange Ring And Sender Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel pump with flange ring and sender

1	Fuel pump
2	Fuel level sender
3	Gasket - replace
4	Flange ring >Tightening torque 110 Nm (81.1 ftlb.)

PHEV only:

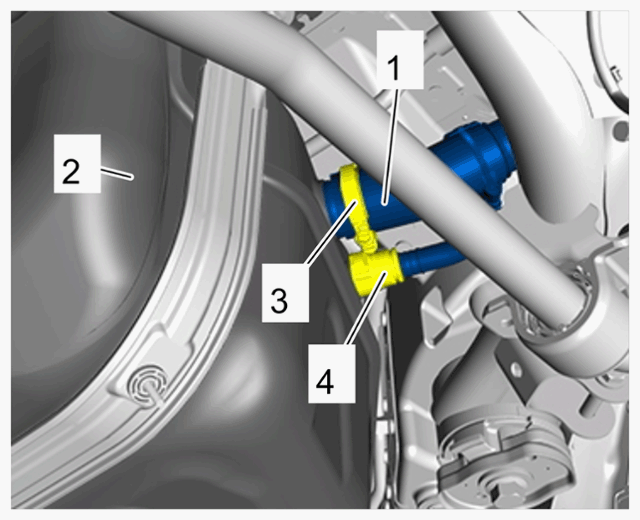

Fig 4: Fuel Filler Tube On Fuel Tank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fuel filler tube on fuel tank

1	Filler tube
2	Fuel tank
3	Screw-type clamp >Tightening torque 3.5 Nm (2.6 ftlb.)
4	Quick-connecting lock on vent line
