Active Carbon System

WARNING: This page is about a different variant/trim than selected.

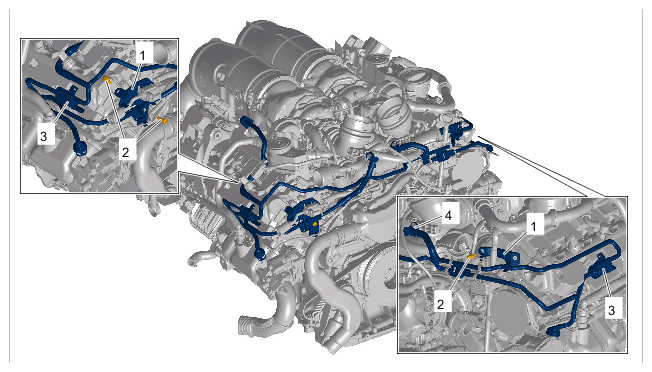

Fig 1: Active Carbon Filter System On Engine Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Active carbon filter system on engine

1	Sensor dummy
2	Screw, M6 x 16 >Tightening torque 9 Nm (6.5 ftlb.)
3	Active carbon valve
4	Coupling

Holder for active carbon filter system on valve cover:

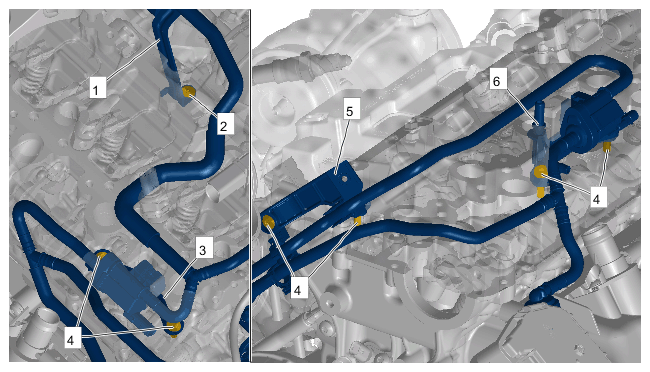

Fig 2: Holder For Active Carbon Filter System On Valve Cover Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder for active carbon filter system on valve cover

1	Damping element holder
2	Screw, M6 x 12 >Tightening torque 9 Nm (6.5 ftlb.)
3	Active carbon filter valve holder, right
4	Screw, M6 x 20 >Tightening torque 9 Nm (6.5 ftlb.)
5	Pressure sensor holder
6	Active carbon filter valve holder, left
