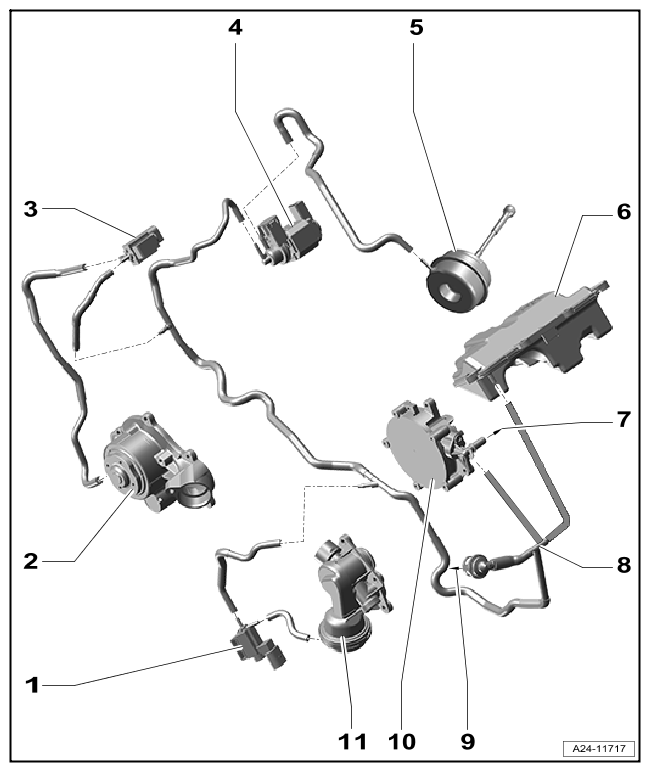

Vacuum system (monoturbo)
| 1 | Coolant valve for cylinder block |
| 2 | Coolant pump |
| 3 | Control valve for mechanical coolant pump |
| 4 | Boost pressure control cycle valve |
| 5 | Pressure unit |
| 6 | Vacuum reservoir |
| 7 | to brake booster |
| 8 | Vacuum distributor piece with check valve |
| 9 | to air guide pipe |
| 10 | Vacuum pump |
| 11 | Coolant shut-off valve |
