Turbocharger (Monoturbo)

WARNING: This page is about a different variant/trim than selected.

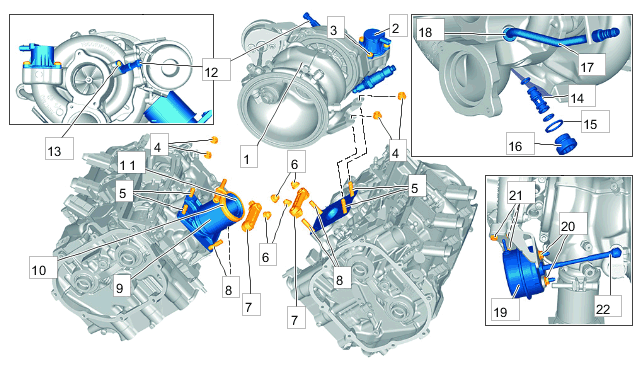

Fig 1: Turbocharger Components Location With Torque Specification (Monoturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turbocharger (monoturbo)

1	Turbocharger
2	Shut-off valve O-ring replace
3	Screws (M6 x 18) >Tightening torque 9 Nm (6.6 ftlb.)
4	Nuts (M8) stud/replace > Tightening torque 25 Nm (18.4 ftlb.)
5	Stud >Tightening torque 15 Nm (11.1 ftlb.)
6	Nuts (M8) dowel studs/replace > Tightening torque 30 Nm (22.1 ftlb.)
7	Clamp
8	Dowel stud >Tightening torque 15 Nm (11.1 ftlb.)
9	Decoupling element
10	V-band clip/replace > Tightening torque 20 Nm (14.8 ftlb.)
11	Gasket/replace
12	Speed sensor
13	Screw (M4 x 14)/>Tightening torque 5 Nm (3.7 ftlb.)
14	Nozzle
15	Sealing ring (A16 x 20)/replace (A16 x 20)
16	Screw plug (M16 x 1 x 7.5)>Tightening torque 25 Nm (18.4 ftlb.)
17	Active carbon filter line
18	O-ring (7.65 x 1.76)/replace
19	Vacuum modulator
19.1	> Setpoint value 8 mm +/- 1 mm
19.2	> Setpoint value 3 mm +/- 1 mm
20	Nuts (M6)>Tightening torque 8 Nm (5.9 ftlb.)
21	Bolts
22	Safety clip
ohne Abb.	Shut-off valve
ohne Abb.	Screws (M6 x 18) >Tightening torque 9 Nm (6.6 ftlb.)
ohne Abb.	Screw (M6 x 14) >Tightening torque 9 Nm (6.6 ftlb.)

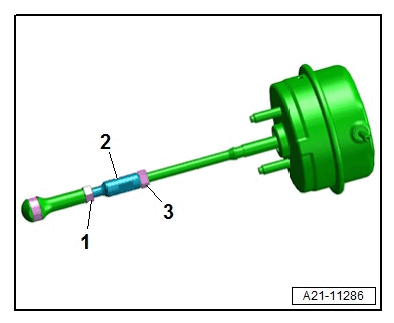

Fig 2: Lock Nuts On Control Box Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock nuts on control box

1 + 3

Lock nut on control rod>Tightening torque 8 Nm (5.9 ftlb.)

Coolant lines and oil lines on turbocharger

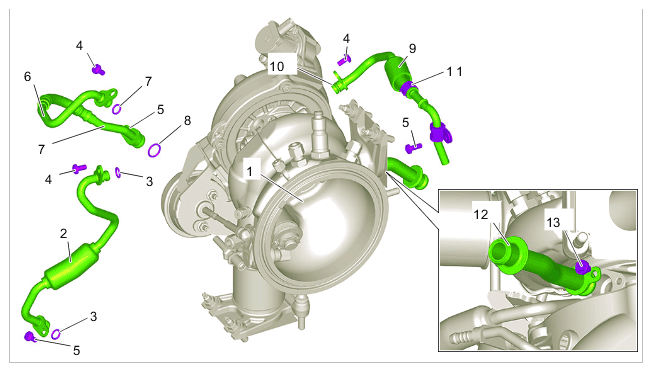

Fig 3: Coolant Lines And Oil Lines On Turbocharger Components Location With Torque Specification - V6 Monoturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines and oil lines on turbocharger - V6 monoturbo

1	Turbocharger
2	Coolant return line
3	O-ring/replace
4	Screw (M6 x 12) >Tightening torque 9 Nm (6.6 ftlb.)
5	Screw (M6 x 16) >Tightening torque 9 Nm (6.6 ftlb.)
6	Oil feed line
7	O-ring/replace
8	O-ring/replace
9	Coolant supply line
10	O-ring/replace
11	Bracket
12	Oil return pipe/must always be replaced after removal
13	Pin/must always be replaced after removal

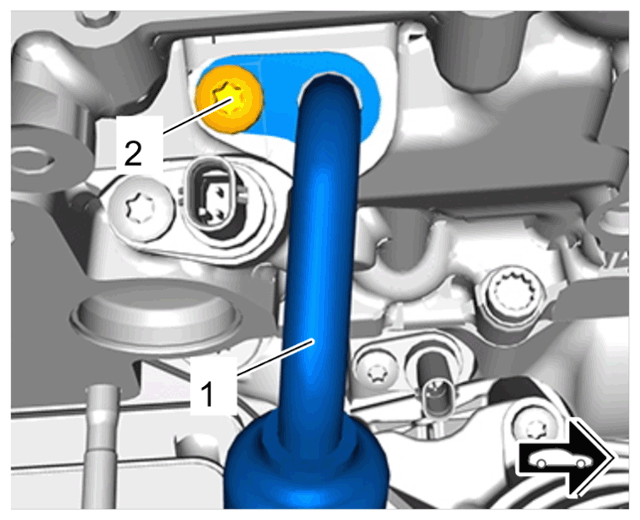

Fig 4: Coolant Line On Left Cylinder Bank Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant line on left cylinder bank

1	Coolant return line for turbocharger to left cylinder head
2	Screw >Tightening torque 9 Nm (6.6 ftlb.)
