Pressure Pipe And Intake Pipe (V6 Monoturbo)
WARNING: This page is about a different variant/trim than selected.

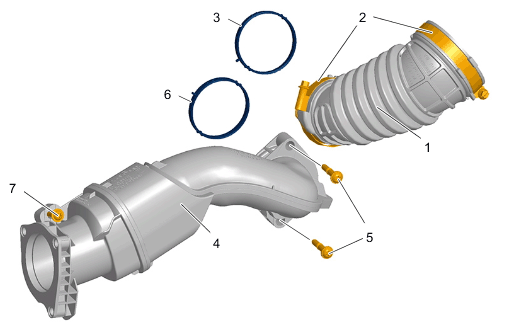

Pressure pipe and intake pipe - V6 monoturbo
| 1 | Suction hose |
| 2 | Screw-type clamp >Tightening torque 3.5 Nm (2.5 ftlb.) |
| 3 | Seal/replace if damaged |
| 4 | Pressure pipe |
| 5 | Screws >Tightening torque 8 Nm (6 ftlb.) |
| 6 | Seal/replace if damaged |
| 7 | Screw >Tightening torque 8 Nm (6 ftlb.) |
