Charge Air Cooling - V6 Monoturbo

WARNING: This page is about a different variant/trim than selected.

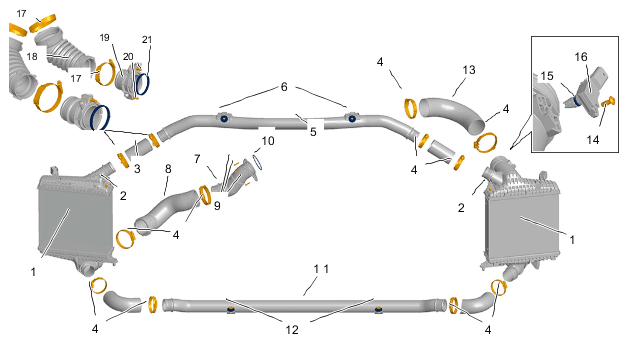

Fig 1: Charge Air Cooling Components Location With Torque Specification - V6 Monoturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Charge air cooling - V6 monoturbo

1	Charge air cooler
2	Screw
3	Pressure hose
4	Screw-type clamp >Tightening torque 5.5 Nm (4 ftlb.)
5	Pressure pipe, top
6	Screws, M6 x 25 >Tightening torque 8 Nm (6 ftlb.)
7	Pressure pipe
8	Pressure hose
9	Screw, M6 >Tightening torque 8 Nm (6 ftlb.)
10	Replacing /O-ring
11	Lower pressure pipe
12	Screws, M6 x 25 >Tightening torque 8 Nm (6 ftlb.)
13	Pressure hose
14	Screw>Tightening torque 5 Nm (3.5 ftlb.)
15	Replacing /O-ring
16	Pressure sensor
17	see V6 biturbo
18	see V6 biturbo
19	see V6 biturbo
20	see V6 biturbo
21	see V6 biturbo
