Preliminary Work For Packing 12-Volt Lithium-Ion Battery

WARNING: This page is about a different variant/trim than selected.
  1. Remove the critical battery from the vehicle using >VAS 6883 - Insulated Tool Set  and place it on a suitable base.

    > 270619 REMOVING AND INSTALLING VEHICLE ELECTRICAL SYSTEM BATTERY

  2. Fit protection caps on battery terminals.

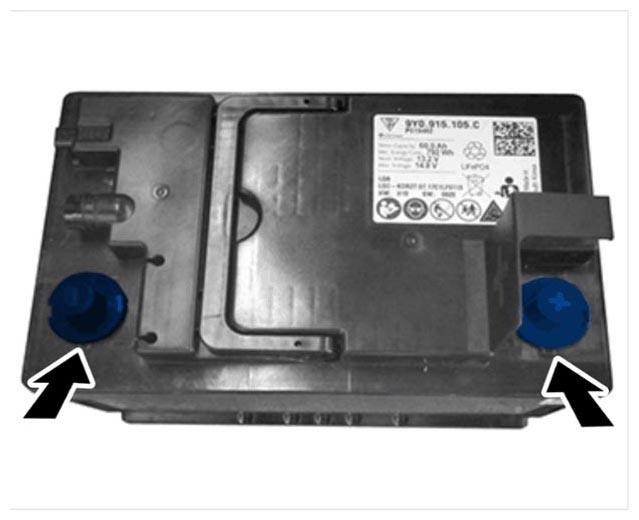

    G15241692Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Protection caps on battery terminals

  3. Close the positive terminal cover on the battery.

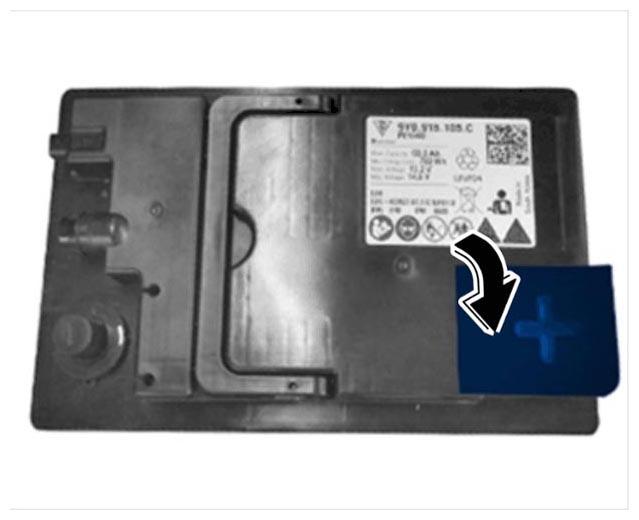

G15241693Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positive terminal cover
