Removing ATF Pan

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Remove ATF pan -14- .

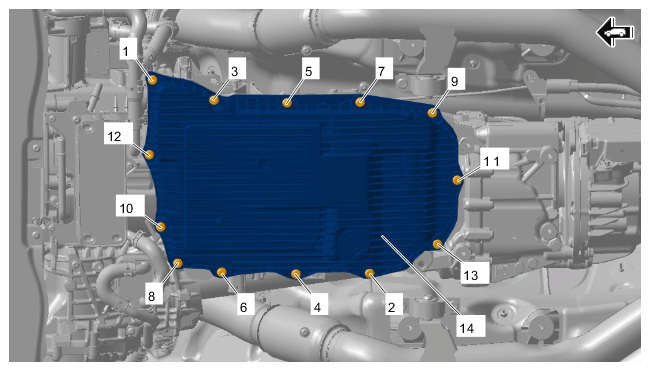

Fig 1: ATF Pan Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for ATF pan
1. 1.1 Unscrew screws on ATF pan in the loosening sequence -13 to 1- .
2. 1.2 Remove ATF pan -14- .
3. 1.3 Catch any emerging ATF using suitable aids.
