Replacing Transmission Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

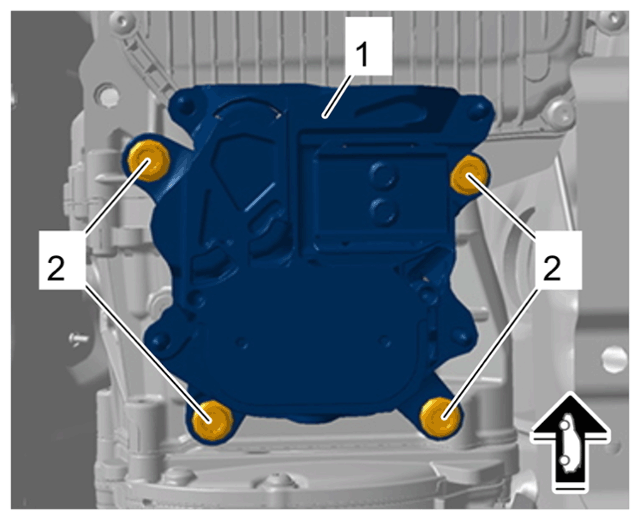

Transmission mount with transmission bracket

1. 1.1  Unscrew screws -2-  and remove transmission mount with transmission bracket -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

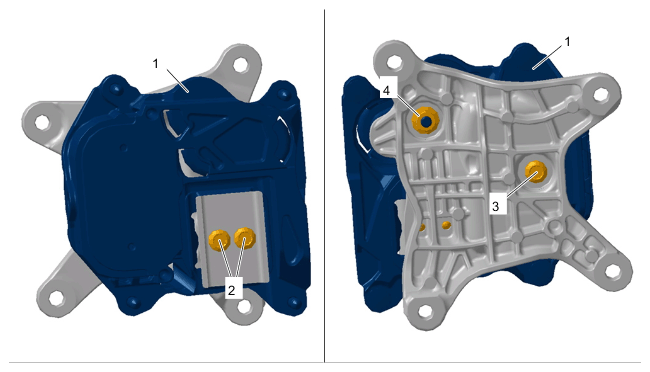

Transmission mount

1. 2.1  Unscrew and remove screws -2-  .
2. 2.2  Unscrew screw -3-  .
3. 2.3  Screw off nut -4-  .
4. 2.4  Remove transmission mount -1-  from transmission bracket.
5. 2.5  Position new transmission mount -1-  on transmission bracket.
6. 2.6  Replace screws.
7. 2.7 Fit and tighten new  screws -2 and 3-  and nut -4-  .

   Tightening torque for screws -2-  : > Initial tightening 20 Nm (15 ftlb.)  > Final tightening torque angle 90 Grad

   Tightening torque for screw -3-  : > Initial tightening 20 Nm (15 ftlb.)  > Final tightening - torque angle 90 Grad

   Tightening torque for nut -4-  : > Tightening torque 20 Nm (15 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission mount with transmission bracket

1. 3.1  Position transmission mount with transmission bracket -1-  .
2. 3.2  Tighten screws -2-  .

   > Tightening torque 40 Nm (30 ftlb.)
