Removing Transmission Support

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect electric line -1-  .

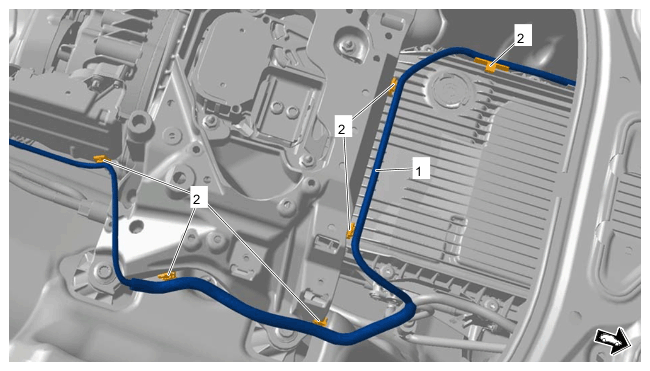

    G15278915Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line clips

    1. 1.1  Unclip line clips -2-  and leave electric line -1-  hanging at the side.
      WARNING: Danger of objects or loads falling down
      • Risk of squashing or crushing

        → Secure components to prevent them from falling down.

  2. Support the transmission in area -1-  using > VAS 6931 - engine and gearbox jack-2-  and a suitable base (e.g. a wooden block).

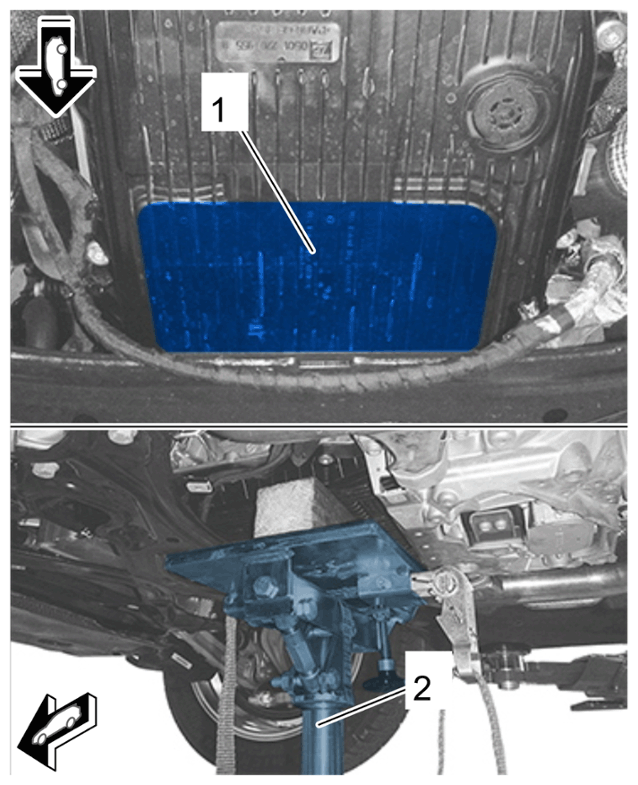

    G15278916Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Support for transmission

  3. Remove transmission support -1-  .

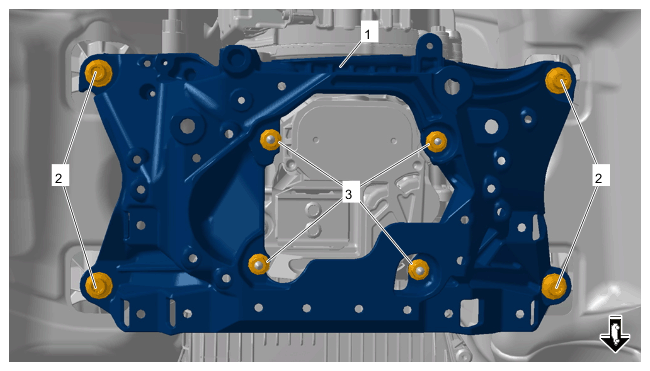

    G15278917Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission support

    1. 3.1  Mark installation position of transmission support with a pen/marker.
    2. 3.2  Unscrew and remove screws -2-  .
    3. 3.3  Lower the transmission support slightly and unscrew screws securing emergency release cable to transmission support.
    4. 3.4  Unscrew nuts -3-  and remove transmission support -1-  .
