Removing Transmission Housing (Rear)

WARNING: This page is about a different variant/trim than selected.
  1. Secure automatic transmission to the assembly support using > 3311 - hook and support tool  .
  2. Disconnect vent line for transmission housing (rear) -1-  and set it aside.

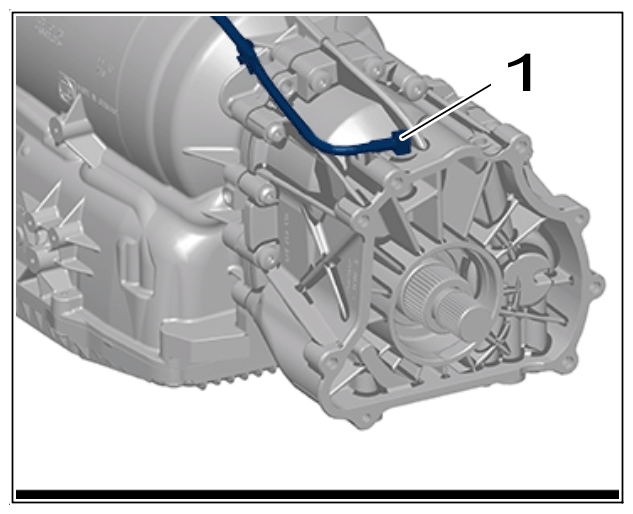

    G15278908Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vent line for transmission housing (rear)

  3. Remove transmission housing (rear).

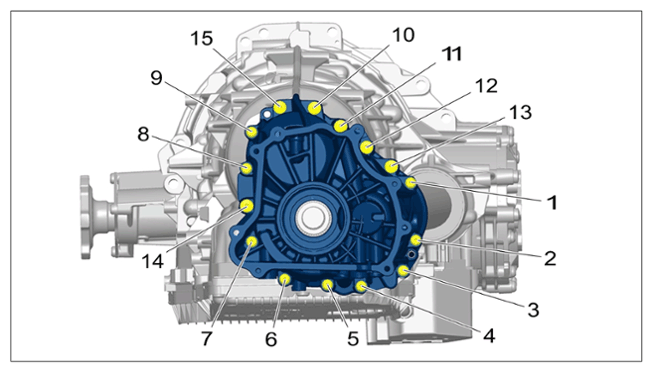

    Fig 1: Transmission Housing Screws Loosening Sequence (Rear)
    G15278909Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission housing (rear)

    1. 3.1  Unscrew and remove screws -15 to 1-  .
    2. 3.2  Carefully loosen the transmission housing (rear) using a rubber hammer and then lift it off.
