Installing Transmission Housing (Rear)

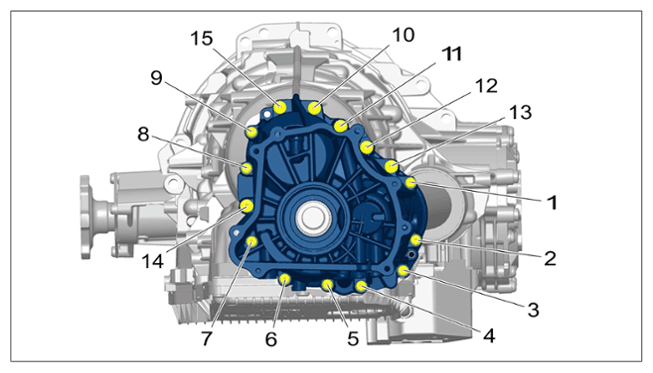

Fig 1: Transmission Housing Screws Tightening Sequence (Rear)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission housing (rear)

1. 1.1  Move transmission housing (rear) into installation position.
2. 1.2  Replace screws -1 to 9-  .
3. 1.3  Screw in screws -1 to 15-  by hand.
4. 1.4  Tighten screws -2, 9 and 6-  to the specified initial tightening torque.

   > Tightening torque 6 Nm (4.5 ftlb.)

5. 1.5  Tighten screws -1 to 9-  to the specified initial tightening torque.

   > Tightening torque 9 Nm (6.5 ftlb.)

6. 1.6  Tighten screws -1 to 9-  .

   > Torque angle + 90°

7. 1.7  Tighten screws -10 to 15-  .

   > Tightening torque 47 Nm (35 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

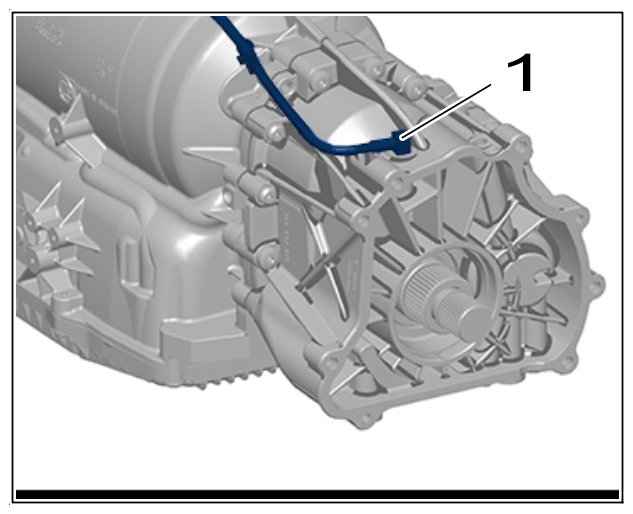

Vent line for transmission housing (rear)
