Removing Automatic Transmission

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing

    → Secure components to prevent them from falling down.

  1. Have suitable stoppers ready for closing off the line connections.
  2. Unscrew screws on heat shield -2-  and remove heat shield -1-  .

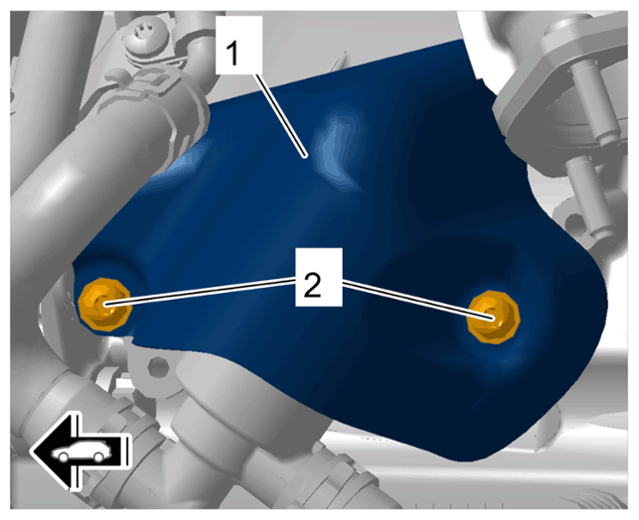

    G15278878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield on additional coolant pump at the left

    WARNING: Hot fluid
    • Danger of scalding

      → Avoid contact with hot fluid.

      → Wear personal protective gear.

  3. Disconnect additional coolant pump at the left

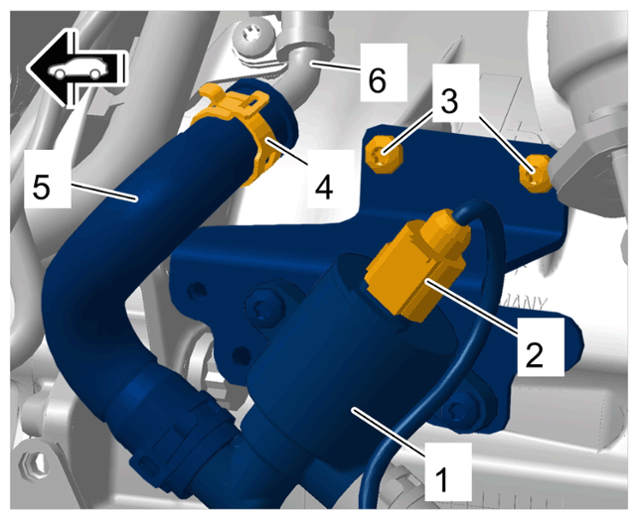

    G15278879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Additional coolant pump at the left

    1. 3.1  Release and disconnect electric plug connection for additional coolant pump -2-  .
    2. 3.2  Unscrew screws on additional coolant pump holder -3-  .
    3. 3.3  Loosen spring band clamp -4-  using > VAS 6890 - spring band clamps pliers  .
    4. 3.4  Disconnect coolant hose -5-  from coolant pipe -6-  .
    5. 3.5  Close off line connections with stoppers.
    6. 3.6  Set additional coolant pump -1-  aside.
    WARNING: Hot fluid
    • Danger of scalding

      → Avoid contact with hot fluid.

      → Wear personal protective gear.

  4. Disconnect coolant line.

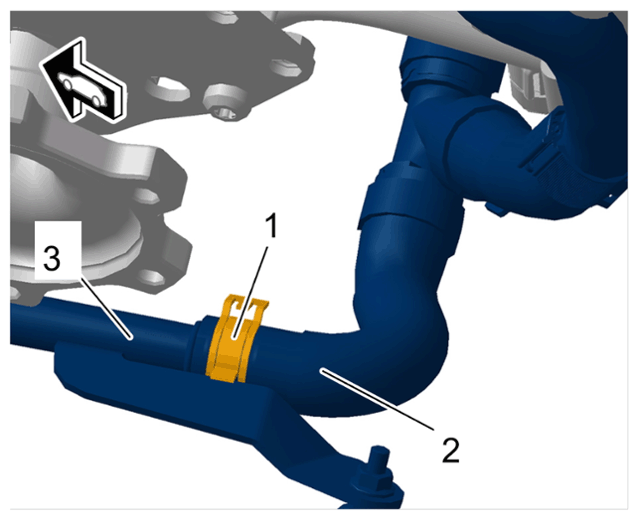

    G15278880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant line

    1. 4.1  Loosen spring band clamp -1-  using > VAS 6890 - spring band clamps pliers  .
    2. 4.2  Disconnect coolant hose -2-  from coolant pipe -3-  .
    3. 4.3  Close off line connections with stoppers.
  5. Disconnect coolant hose

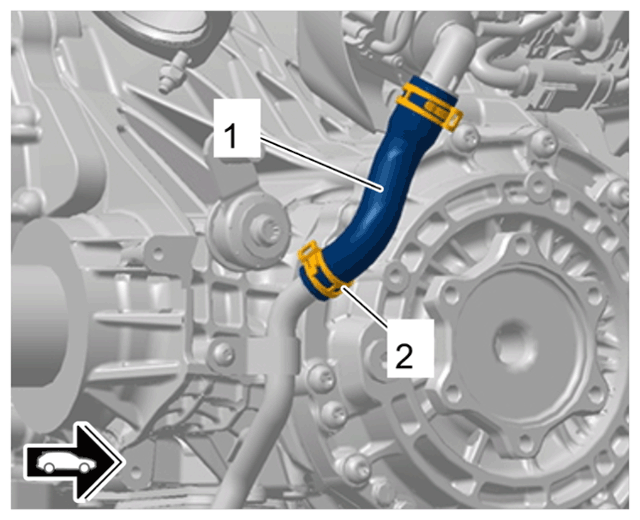

    G15278881Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant hose

    1. 5.1  Loosen spring band clamp -2-  using > VAS 6890 - spring band clamps pliers  .
    2. 5.2  Pull coolant hose -1-  off the coolant pipe.
    3. 5.3  Close off line connections with stoppers.
  6. Coolant line
  7. Remove coolant pipe -1-  .

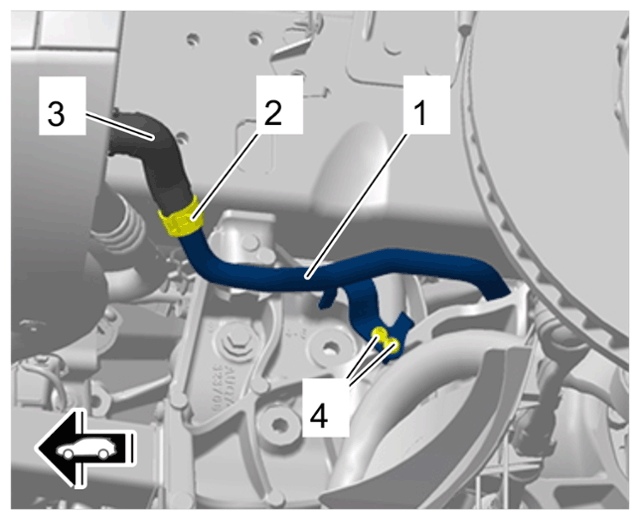

    G15278882Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pipe

    1. 7.1  Loosen spring band clamp -2-  using > VAS 6890 - spring band clamp pliers  and pull coolant hose -3-  off the coolant pipe -1-  .
      1. 7.1.1  Close off line connections with stoppers.
    2. 7.2  Unscrew screws for coolant pipe -4-  .
    3. 7.3  Remove coolant pipe -1-  .
  8. Unscrew screws for automatic transmission at the top -2-and-3-  .
    G15278883Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for automatic transmission

  9. Hybrid only:

    Release and disconnect electric plug connection on pressure adjuster for clutch -1-  .

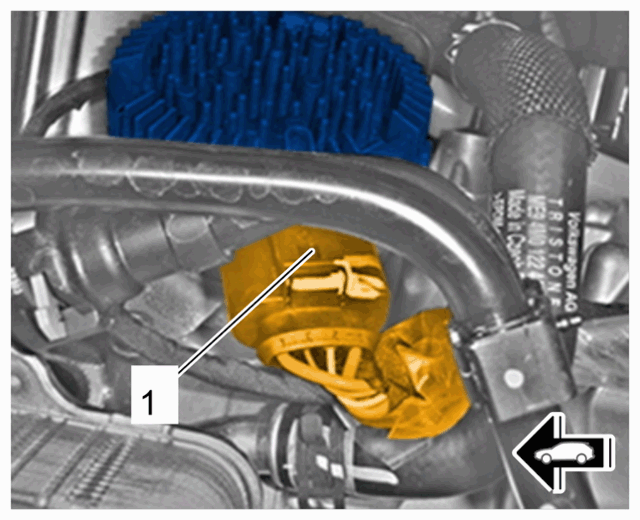

    G15278884Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on pressure adjuster for clutch

  10. Disconnect electric wire harness -3-  .

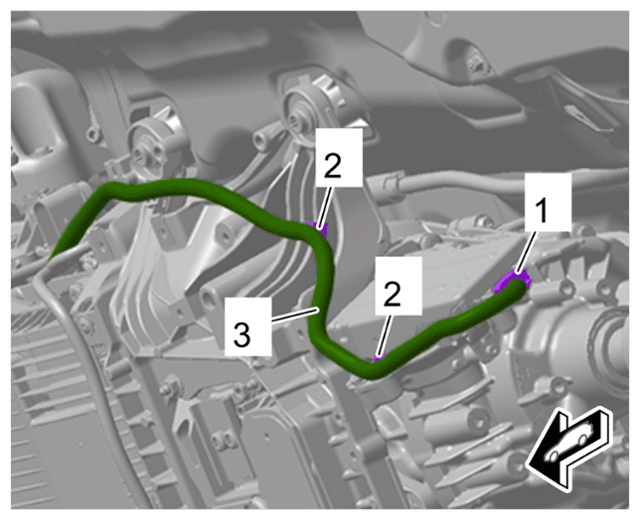

    G15278885Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for automatic transmission

    1. 10.1  Release and disconnect electric plug connection -1-  .
    2. 10.2  Unclip line clips -2-  and set electric wire harness -3-  aside.
  11. Disconnect electric wire harness on automatic transmission -1-  .

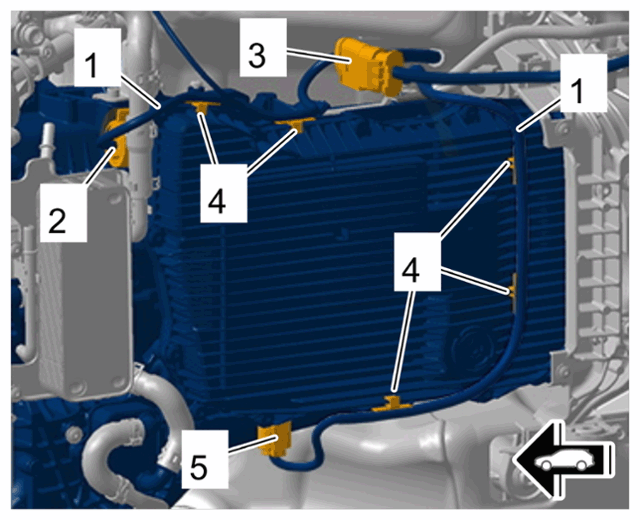

    G15278886Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for automatic transmission

    1. 11.1  Release and disconnect electric plug connections on automatic transmission -2 and 3-  .
    2. 11.2  Release and disconnect electric plug connection -5-  .
    3. 11.3  Unclip clips -4-  on electric wire harness for automatic transmission.
    4. 11.4  Move electric wire harness for automatic transmission -1-  aside.

      Information

    To make it easier to turn the engine, the drive belts can be removed from the generator and air-conditioning compressor.

    > Removing and installing drive belt (V8 biturbo)

  12. Unscrew drive plate screws

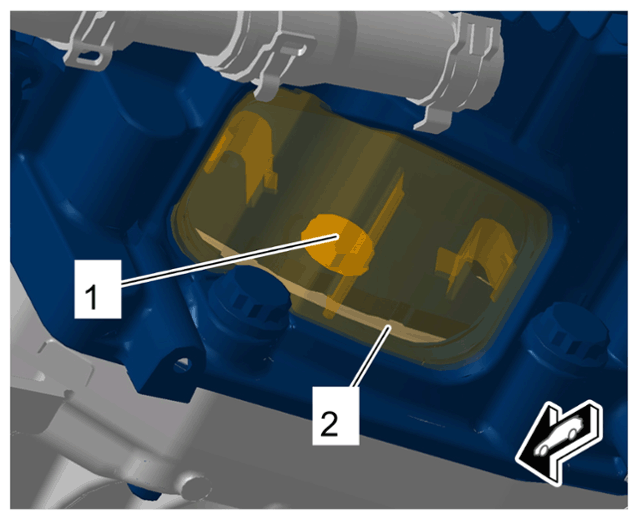

    G15278887Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Drive plate screws

    1. 12.1  Remove cap -2-  .
    2. 12.2  Unscrew drive plate screw -1-  .
    3. 12.3  Turn the engine further and repeat the procedure on all drive plate screws -1-  .
  13. Unscrew and remove screws -4-  .
    G15278888Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for automatic transmission

    1. 13.1  Unscrew screws -4-  on automatic transmission using a commercially available 3/8-inch flexible-head socket (a/f 16).
  14. Unscrew screws for automatic transmission -5 to 7-  .

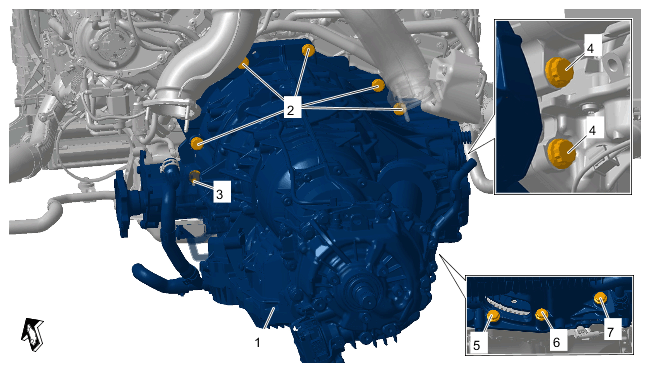

    G15278889Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for automatic transmission

  15. Support automatic transmission

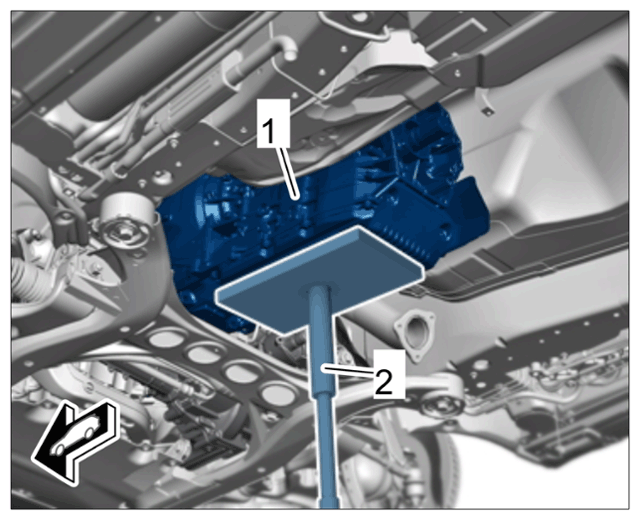

    G15278890Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Automatic transmission on transmission jack (shown as an example)

    1. 15.1  > T40173A - Gearbox support  must be set up on > VAS 6931 - engine and gearbox Jack-2-  .
    2. 15.2  > VAS 6931 - Engine and gearbox jack-2-  must be positioned under the automatic transmission -1-  and fitted on the automatic transmission -1-  .
    3. 15.3  Secure automatic transmission -1-  on > VAS 6931 - engine and gearbox jack-2-  using a tension strap.
  16. Support the engine.
  17. Loosen transmission support -1-  .

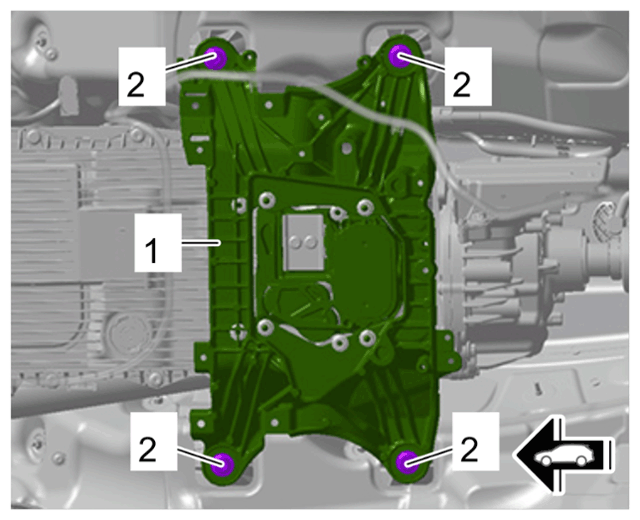

    G15278891Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission support

    1. 17.1  Unscrew screws on transmission support -2-  .
    2. 17.2  Carefully lower the automatic transmission together with transmission support on > VAS 6931 - engine and gearbox jack  and guide them out of the vehicle.
