Removing Selector Knob
WARNING: This page is about a different variant/trim than selected.

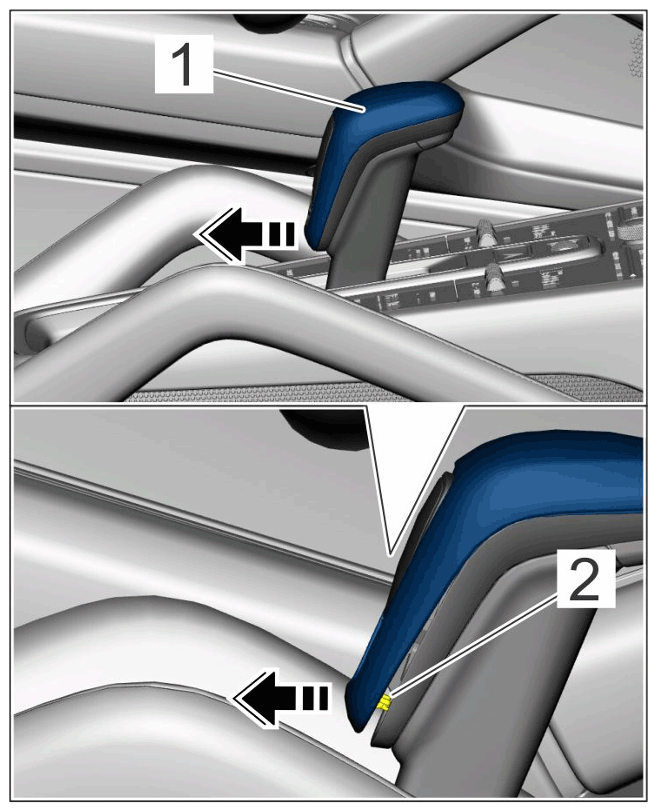

- Installing selector knob cover -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Selector knob cover
- 1.1
Loosen -1-
lower -Arrow-
selector knob cover and unclip locking lug
- 1.2
Loosen selector knob cover -1-
at the top and remove.

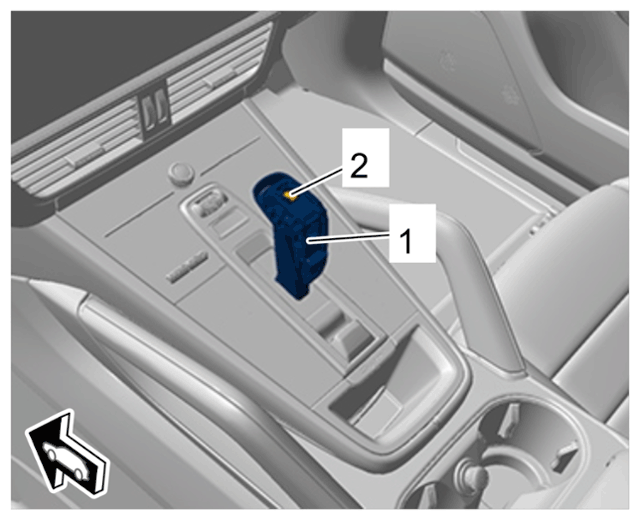

- Remove selector knob -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Selector knob
- 2.1
Unscrew screw -2-
.
- 2.2
Pull off selector knob -1-
.
