Topping Up ATF

WARNING: This page is about a different variant/trim than selected.
  1. > VAS 6622A - Used oil collection and extraction unit must be placed under the transmission.
    WARNING: Hot fluid
    • Danger of scalding

      → Let the fluid cool down.

      → Wear personal protective gear.

  2. Unscrew screw plug for filling oil -1-  .

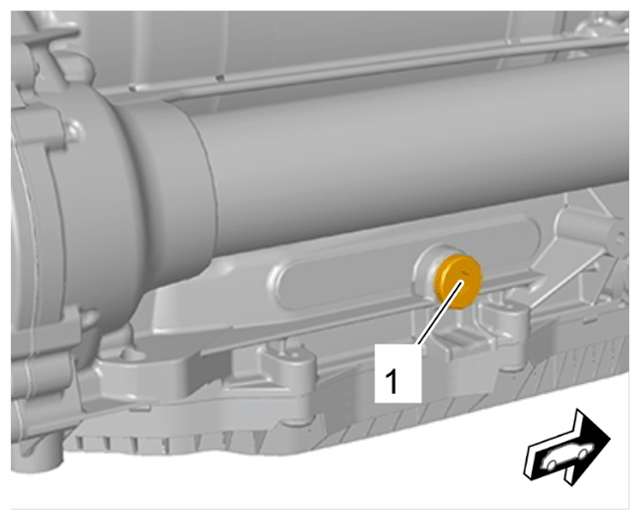

    G15278851Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw plug for filling oil

    IMPORTANT: Use only oil approved by Porsche.
  3. Top up ATF.
    1. 3.1  > VAS 6262A - Adapter for oil filling  must now be connected.
    2. 3.2  Add ATF until oil emerges.
    3. 3.3  > VAS 6262A - Adapter for oil filling  must now be removed.
  4. Tighten screw plug for filling oil -1-  .

    > Tightening torque 30 Nm (22 ftlb.) (22.1 ftlb.)

    G15278852Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw plug for filling oil

  5. Check ATF again.
    IMPORTANT: An additional quantity of ATF oil is required in the ATF oil circuit to guarantee improved operating reliability.
  6. Overfill ATF.

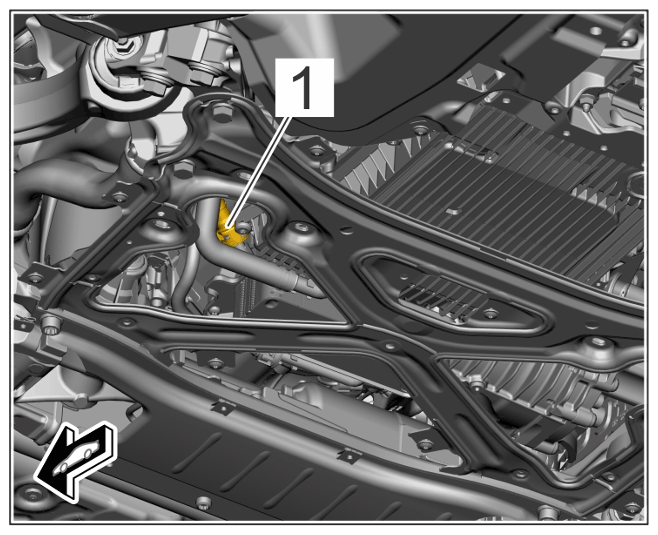

    G15278853Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Quick connector on ATF cooler

    1. 6.1  > VAS 6617 - Hand pump for gear oil  must be connected te > P90020 - adapter  .
    2. 6.2  > VAS 6617 - Hand pump for gear oil  must be filled with the defined quantity of oil (see table). The dg this, suck in air through the pump and use the scale en the pump te set at least the defined quantity of oil from an ATF oil container.
    3. 6.3  Open oil line for the ATF cooler atthequickconnector -1-  and insert > P90020 - adapter  at the quick connector.
    4. 6.4  Fill the set quantity of oil using > VAS 6617 - hand pump for gear oil. After filling, suck in air again and inject it to ensure that the oil is filled completely.
    5. 6.5  > P90020 - Adapter  must now be pulled off. After filling completely, close the line for the ATF cooler with the quick connector -1-  by pressing down the locking clip on the ATF connection piece and check that it is fitted securely.
      Filling capacitiesCayenne Hybrid/Cayenne Hybrid (China)/Cayenne Hybrid Coupe/Cayenne Hybrid Coupe (China) Cayenne/Cayenne Coupe/Cayenne S/Cayenne S Coupe/Cayenne GTS/Cayenne GTS Coupe Cayenne Turbo/Cayenne Turbo CoupeCayenne Turbo S Hybrid/Cayenne Turbo S Hybrid Coupe
      Transmission oil quantity > Filling capacity 260 ml > Filling capacity 370 ml > Filling capacity 280 ml No additional quantity
