Removing Exhaust Temperature Sensor
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.
Information
- The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.
- Remove exhaust temperature sensor -1- .

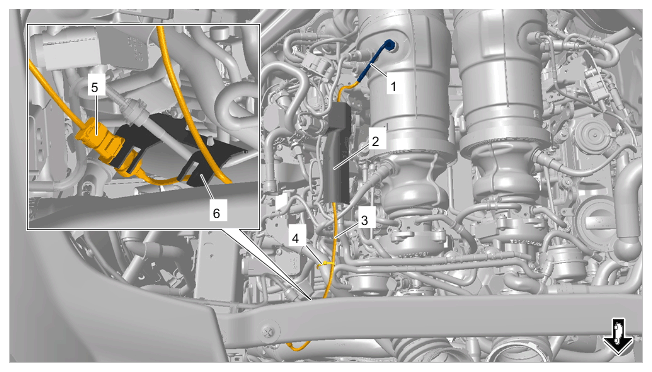

Exhaust temperature sensor
- 1.1 Mark installation position of exhaust temperature sensor -1- .
- 1.2 Only for exhaust temperature sensor at the right:
Open heat shield -2- and remove electric line -3- .
- 1.3 Cut tie-wrap -4- .
- 1.4 Release and disconnect cable plug -5- and unclip it from the holder -6- .
- 1.5 Unscrew and remove exhaust temperature sensor -1- .
